Product Summary
The KBU810 is a 8.0 A Single-Phase Silicon Bridge Rectifier.
Parametrics
KBU810 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 1000V; (2)Maximum RMS bridge input voltage, VRMS: 700V; (3)Maximum DC blocking voltage, VDC: 1000V; (4)Maximum average forward rectified output current at TA=100℃, IF(AV): 8.0A; (5)Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method), IFSM: 300A; (6)Rating for fusing (t<8.3ms), i2t: 300 A2sec; (7)Typical thermal resistance per element, ReJA: 2.7℃/W; (8)Operating junction and storage temperature range, Tj, Tstg: -55 to 150℃.
Features
KBU810 features: (1)This series is UL listed under the Recognized Component Index, file number E142814; (2)The plastic material used carries Underwriters Laboratory flammability recognition 94V-0; (3)Ideal for P.C. Board mounting; (4)High surge current capability; (5)High temperature soldering guaranteed 265℃/10 seconds at 5 lbs (2.3kg) tension.

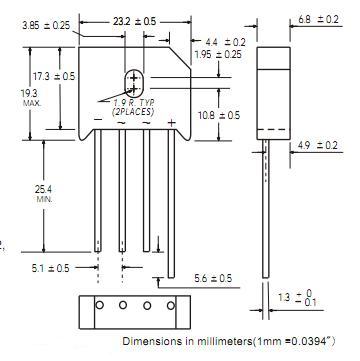

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KBU810 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU810G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KBU810G-G |
Other |
|
Data Sheet |
Negotiable |
|
||||
