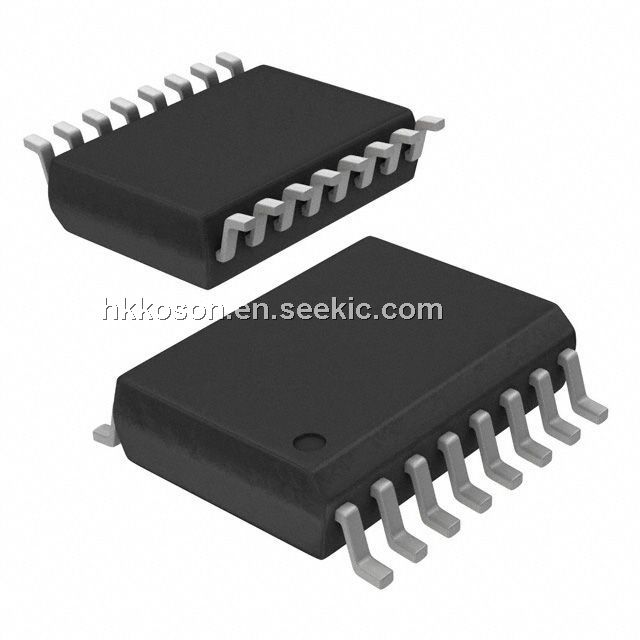

Product Summary
The L4971D is a high-performance 1.5A STEP DOWN SWITCHING REGULATOR.
Parametrics
L4971D Parametrics:
Packaging
Tube
Type
Step-Down (Buck)
Output Type
Adjustable
Number of Outputs
1
Voltage - Output
3.3 V ~ 50 V
Voltage - Input
8 V ~ 55 V
PWM Type
-
Frequency - Switching
100kHz ~ 300kHz
Current - Output
1.5A
Synchronous Rectifier
No
Operating Temperature
0°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.295", 7.50mm Width)
Supplier Device Package
16-SO W
For Use With
Other Names
497-1411-5
497-1411-5-ND
497-3357-5
Features
L4971D FEATURES:
■ UP TO 1.5A STEP DOWN CONVERTER
■ OPERATING INPUT VOLTAGE FROM 8V TO 55V
■ PRECISE 3.3V (±1%) INTERNAL REFERENCE VOLTAGE
■ OUTPUT VOLTAGE ADJUSTABLE FROM 3.3V TO 50V
■ SWITCHING FREQUENCY ADJUSTABLE UP TO 300KHz
■ VOLTAGE FEEDFORWARD
■ ZERO LOAD CURRENT OPERATION
■ INTERNAL CURRENT LIMITING (PULSEBYPULSE AND HICCUP MODE)
■ INHIBIT FOR ZERO CURRENT CONSUMPTION
■ PROTECTION AGAINST FEEDBACK DISCONNECTION
■ THERMAL SHUTDOWN
■ SOFT START FUNCTION

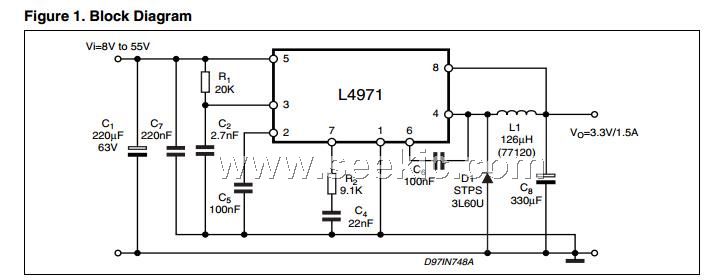

Diagrams
