Product Summary
The L6566ATR is a high-performance Multi-mode controller for SMPS with PFC front-end.
Parametrics
L6566ATR Parametrics:
Packaging | Digi-Reel? |
---|---|
Output Isolation | Isolated |
Frequency Range | 93kHz ~ 107kHz |
Voltage - Input | 8 V ~ 23 V |
Voltage - Breakdown | - |
Voltage - Output | - |
Power (Watts) | 750mW |
Operating Temperature | -40°C ~ 150°C |

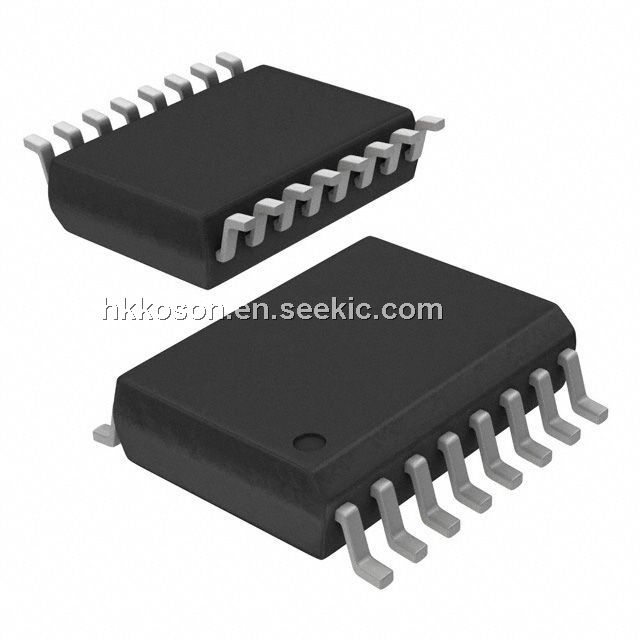

Package / Case | 16-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 16-SO |
For Use With | |
Other Names | 497-6296-6 |
Features
L6566ATR Features:
■ Selectable multi-mode operation: fixed frequency or quasi-resonant
■ Onboard 700 V high-voltage startup
■ Advanced light load management
■ Low quiescent current (< 3 mA)
■ Adaptive UVLO
■ Line feedforward for constant power capability vs. mains voltage
■ Pulse-by-pulse OCP, shutdown on overload (latched or auto-restart)
■ Transformer saturation detection
■ Switched supply rail for PFC controller
■ Latched or auto-restart OVP
■ Brownout protection
■ -600/+800 mA totem pole gate-driver with active pull-down during UVLO
■ SO16N package
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L6566ATR |
STMicroelectronics |
Switching Converters, Regulators & Controllers Multi Mode PWM Controller |
Data Sheet |
|
|
|||||||||||||
