Product Summary
The LM317LMX is a hig-performance 3-Terminal 0.1A Positive Adjustable Regulator.
Parametrics
LM317LMX Parametrics:
Packaging
Cut Tape (CT)
Regulator Topology
Positive Adjustable
Voltage - Output
1.2 V ~ 37 V
Current - Output
100mA
Voltage - Dropout (Typical)
-
Number of Regulators
1
Voltage - Input
Up to 40V
Current - Limit (Min)
-
Operating Temperature
0°C ~ 125°C
Mounting Type
Surface Mount
Package / Case

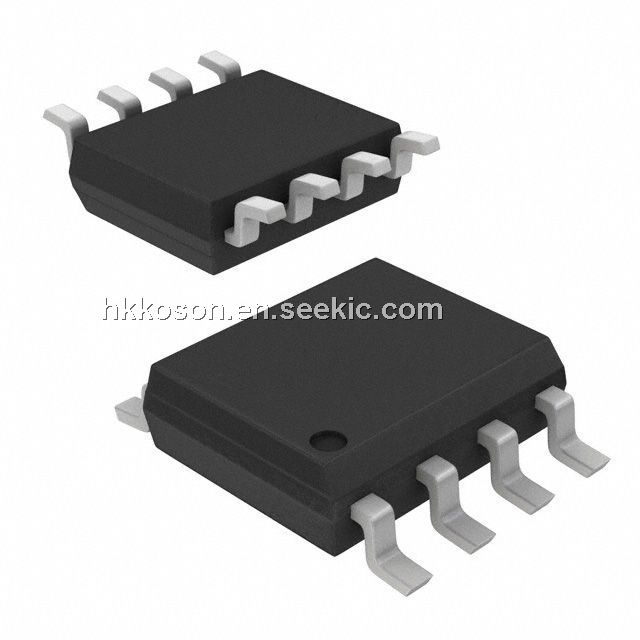

8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOP
Dynamic Catalog
> 20V(Max)
Other Names
LM317LMXFSCT
Features
LM317LMX Features:
? Output Current in Excess of 100 mA
? Output Adjustable Between 1.2 V and 37 V
? Internal Thermal Overload Protection
? Internal Short Circuit Current Limiting
? Output Transistor Safe Area Compensation
? Floating Operation for High-Voltage Applications
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM317LMX |
Fairchild Semiconductor |
Linear Regulators - Standard Positive adj Reg 3Terminal |
Data Sheet |
|
|
||||||||||||
|
LM317LMX/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard 3-TERMINAL ADJ REG |
Data Sheet |
|
|
||||||||||||
