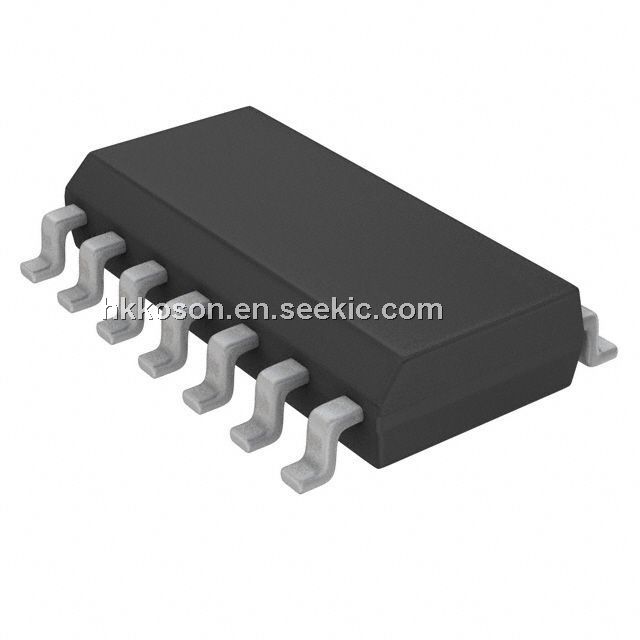

The LM339AMX is a high-performance Quad Comparator.
Parametrics
LM339AMX Parametrics:
Series
-
Packaging
Tape & Reel (TR)
Type
General Purpose
Number of Elements
4
Output Type
DTL, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (±)
2 V ~ 36 V, ±1 V ~ 18 V
Voltage - Input Offset (Max)
2mV @ 5V
Current - Input Bias (Max)
0.25μA @ 5V
Current - Output (Typ)
18mA @ 5V
Current - Quiescent (Max)
2.5mA
CMRR, PSRR (Typ)
-
Propagation Delay (Max)
-
Hysteresis
-
Operating Temperature
0°C ~ 70°C
Package / Case
14-SOIC (0.154", 3.90mm Width)
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Dynamic Catalog
Comparators - 4+ elements
Other Names
LM339AMXFS
LM339AMXFS-ND
LM339AMXFSTR
Features
LM339AMX Features:
? Single or Dual Supply Operation
? Low Supply Current Drain 800μA Typ.
? Open Collector Outputs for Wired and Connectors
? Low Input Bias Current 25nA Typ.
? Low Input Offset Current ±2.3nA Typ.
? Low Input Offset Voltage ±1.4mV Typ.
? Input Common Mode Voltage Range Includes Ground.
? Low Output Saturation Voltage
? Output Compatible With TTL, DTL and MOS Logic System

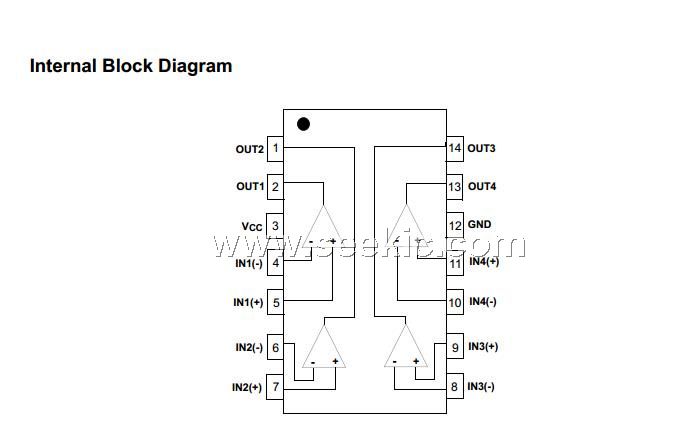

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM339AMX |
Fairchild Semiconductor |
Comparator ICs Quad Comparator |
Data Sheet |
|
|
||||||||||||
|
LM339AMX/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG QUAD COMPARATOR |
Data Sheet |
|
|
||||||||||||
