Product Summary

The LM5009MM is a high-performance Power Management IC.

Parametrics

LM5009MM Parametrics:

Packaging   Tape & Reel (TR)
Type Step-Down (Buck)
Output Type Adjustable
Number of Outputs 1
Voltage - Output 2.5 V ~ 85 V
Voltage - Input 9.5 V ~ 95 V
PWM Type -
Frequency - Switching 600kHz
Current - Output 150mA
Synchronous Rectifier No
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount

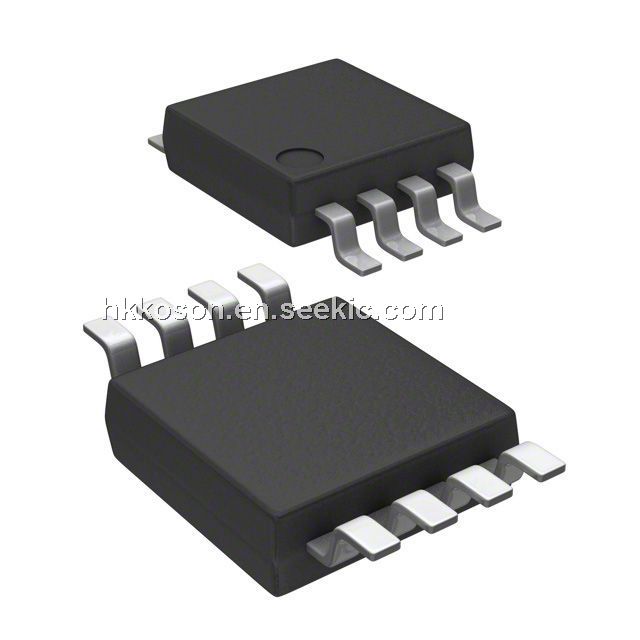

Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package 8-VSSOP
For Use With
LM5009EVAL/NOPB-ND - EVAL BOARD FOR LM5009
LM5009EVAL-ND - BOARD EVALUATION LM5009
Other Names LM5009MMTR

Features

LM5009MM Features:

?Integrated N-Channel MOSFET
?Guaranteed 150mA output current capability
?Ultra-Fast Transient Response
?No loop compensation required
? Vinfeed forward provide sconstant operating frequency
?Switching frequency can exceed 600kHz
?Highly efficient operation
?Internal startup regulator
?Intelligent current limit protection
? External shutdown control
?Thermal shutdown

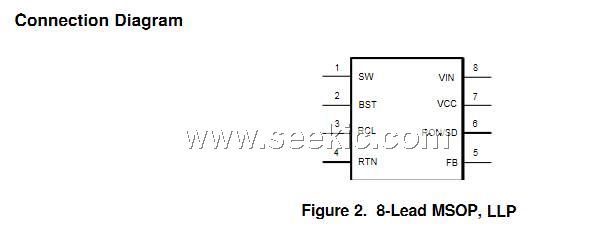

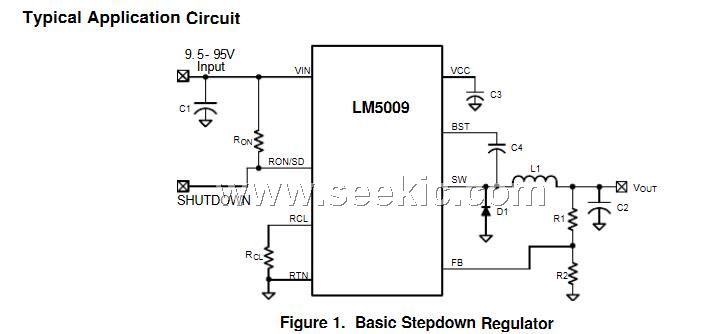

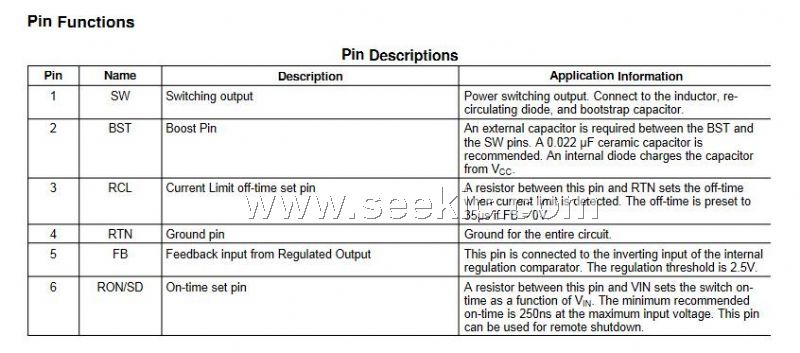

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM5009MM
LM5009MM
National Semiconductor (TI)
Switching Converters, Regulators & Controllers
Data Sheet
0-1000: $0.88
1000-5000: $0.84
LM5009MM/NOPB
LM5009MM/NOPB
National Semiconductor (TI)
Switching Converters, Regulators & Controllers 100V 250Ma Switching Reg
Data Sheet
0-1: $1.85
1-25: $1.49
25-100: $1.35
100-250: $1.22
LM5009MMX/NOPB
LM5009MMX/NOPB
National Semiconductor (TI)
Switching Converters, Regulators & Controllers
Data Sheet
0-2640: $0.88
2640-3500: $0.88
3500-5000: $0.84
LM5009MMX
LM5009MMX
National Semiconductor (TI)
Switching Converters, Regulators & Controllers
Data Sheet
0-3500: $0.88
3500-7000: $0.84
