Product Summary

The LM78L05ACM is a high-performance Power Management IC.

Parametrics

LM78L05ACM Parametrics:

Packaging   Tube
Regulator Topology Positive Fixed
Voltage - Output 5V
Current - Output 100mA
Voltage - Dropout (Typical) -
Number of Regulators 1
Voltage - Input 6.7 V ~ 35 V
Current - Limit (Min) -
Operating Temperature 0°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Dynamic Catalog 3.4V to 5V

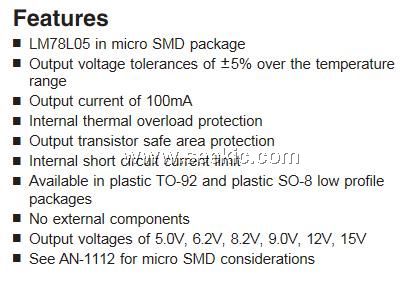

Features

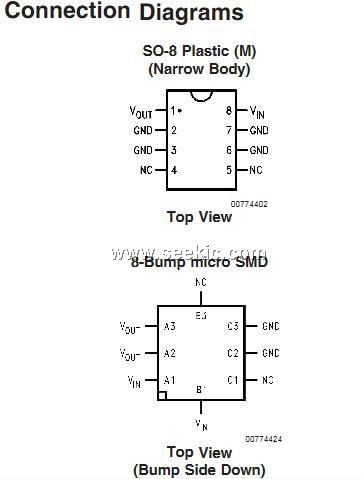

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM78L05ACM
LM78L05ACM
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-1: $0.48
1-25: $0.37
25-100: $0.33
100-250: $0.28
LM78L05ACM/NOPB
LM78L05ACM/NOPB
National Semiconductor (TI)
Linear Regulators - Standard 3-Terminal Pos Reg
Data Sheet
0-1: $0.39
1-25: $0.30
25-100: $0.26
100-250: $0.23
LM78L05ACMX/NOPB
LM78L05ACMX/NOPB
National Semiconductor (TI)
Linear Regulators - Standard 3-TERMINAL POSITIVE REGULATORS
Data Sheet
0-1: $0.43
1-25: $0.33
25-100: $0.29
100-250: $0.25
LM78L05ACMX
LM78L05ACMX
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-2500: $0.17
2500-5000: $0.16
5000-10000: $0.16
