Product Summary
The LMV358MX is a high-performance General Purpose, Low Voltage, Rail-to-Rail Output Operational Amplifier.
Parametrics
LMV358MX Parametrics:
Packaging
Tape & Reel (TR)
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
1 V/μs
Gain Bandwidth Product
1MHz
-3db Bandwidth
-
Current - Input Bias
15nA
Voltage - Input Offset
1.7mV
Current - Supply
210μA
Current - Output / Channel
160mA
Voltage - Supply, Single/Dual (±)
2.7 V ~ 5.5 V, ±1.35 V ~ 2.75 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Other Names
LMV358MXTR
Features
LMV358MX Features:
- (For V+= 5V and V?= 0V, unless otherwise specified)
- available in Automotive AEC-Q100 Grade 1 & 3 versions
- Guaranteed 2.7V and 5V performance
- No crossover distortion
- Industrial temperature range ?40°C to +125°C
- Gain-bandwidth product 1 MHz
- Low supply current
- 210 μA
- Rail-to-rail output swing @ 10 kΩ V+? 10 mV &V?+ 65 mV
- VCM Range ?0.2V to V+? 0.8V

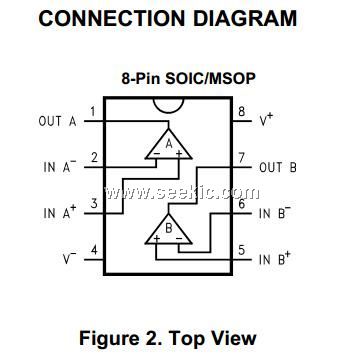

Diagrams
