Product Summary

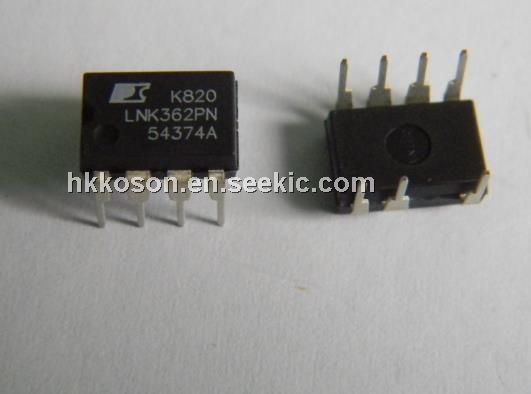

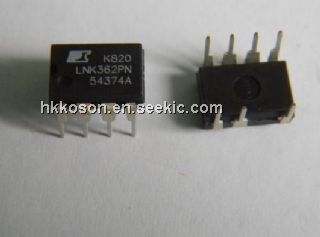

The LNK364PN is a high-performance Energy Ef?cient, Low Power Off-Line Switcher IC.
Parametrics
LNK362PN Parametrics:
Packaging
Tube
Output Isolation
Isolated
Frequency Range
124kHz ~ 140kHz
Voltage - Input
-
Voltage - Breakdown
700V
Voltage - Output
-
Power (Watts)
2.8W
Operating Temperature
-40°C ~ 150°C
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
DIP-8B
For Use With
Other Names
596-1084-2
596-1084-2-ND
596-1084-5
Features
LNK362PN Features:
- Optimized for Lowest System Cost
- Features Superior to Linear/RCC
Accurate hysteretic thermal shutdown protection Accurate hysteretic thermal shutdown protection automatic
recovery improves ?eld reliability
Universal input range allows worldwide operation
Simple ON/OFF control, no loop compensation needed
Eliminates bias winding – simpler, lower cost transformer
Very low component count – higher reliability and single side printed circuit board
Auto-restart reduces delivered power by 95% during short circuit and open loop fault conditions
High bandwidth provides fast turn-on with no overshoot and excellent transient load response
- EcoSmart– Extremely Energy-Ef?cient

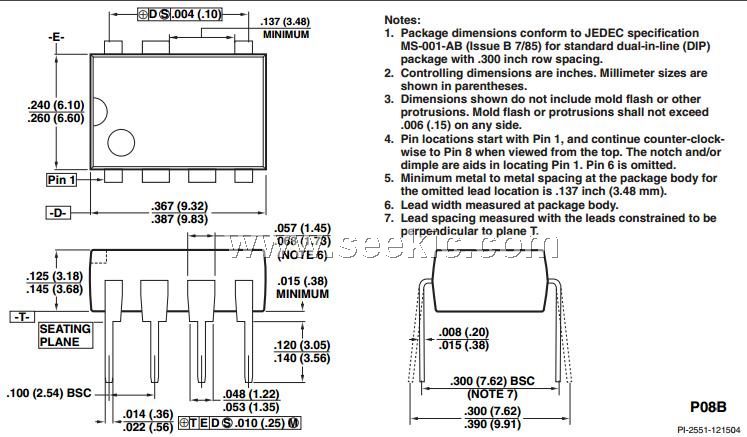

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LNK362PN |
Power Integrations |
AC/DC Switching Converters 2.6W 85-265 VAC 2.8W 230 VAC |
Data Sheet |
|
|
||||||||||||
