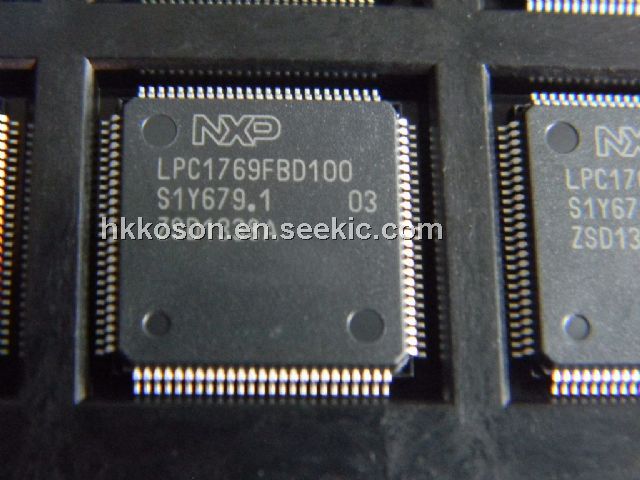

Product Summary

The LPC1769FBD100 are ARM Cortex-M3 based microcontrollers for embedded applications featuring a high level of integration

and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as

enhanced debug features and a higher level of support block integration

Parametrics

LPC1769FBD100 Parametrics:

Packaging Tray
Core Processor ARM? Cortex?-M3
Core Size 32-Bit
Speed 120MHz
Connectivity CAN, Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT
Number of I /O 70
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 2.4 V ~ 3.6 V
Data Converters A/D 8x12b, D/A 1x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C

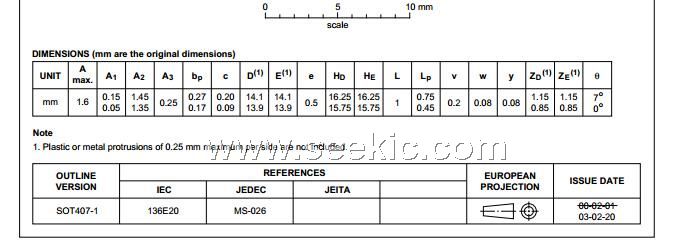

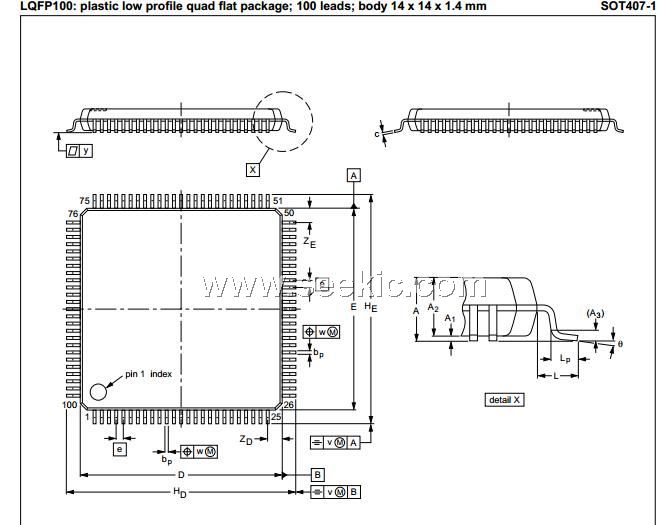

Package/Case 100-LQFP
Dynamic Catalog LPC17xx
For Use With
EA-APP-001-ND - KIT ANDROID OPEN ACCESSORY APP
622-1005-ND - USB IN-CIRCUIT PROG ARM7 LPC2K

Features

LPC1769FBD100 Features:


  • ARM Cortex-M3 processor, running at frequencies of up to 100 MHz


  • ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC).
  • Up to 512 kB on-chip flash programming memory. Enhanced flash memory accelerator enables high-speed

120 MHz operation with zero wait states.

  • In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software.
  • On-chip SRAM includes:
32/16 kB of SRAM on the CPU with local code/data bus for high-performance CPU access.

Diagrams


Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LPC1769FBD100,551
LPC1769FBD100,551
NXP Semiconductors
ARM Microcontrollers (MCU) 120 MHz ARM Cortex-M3 MCU
Data Sheet
0-1: $5.41
1-25: $4.84
25-100: $4.45
100-250: $4.28
