Product Summary

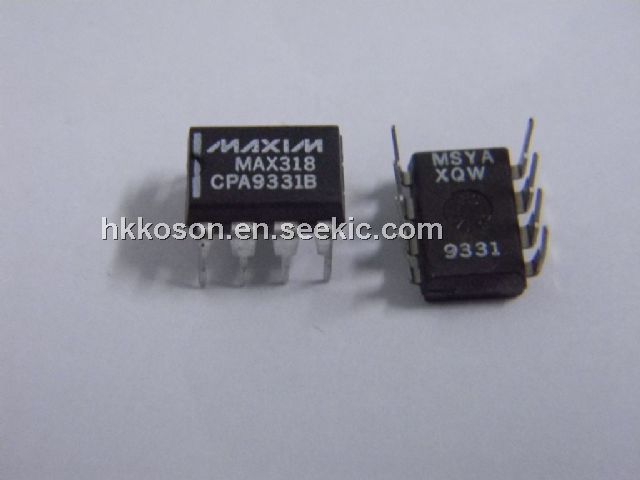

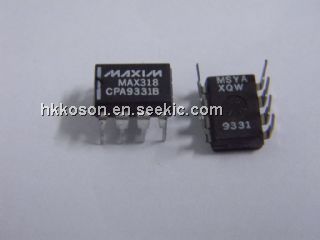

The MAX318CPA is precision, CMOS,monolithic analog switches.The MAX318CPA offer low on resistance (less than 35Ω),
guaranteed to match within 2Ω between channels and to remain flat over the analog signal range (?3Ω max). It also
offer low leakage (less than 250pA at +25°C and less than 6nA at +85°C) and fast switching (turn-on time less than 175ns
and turn-off time less than 145ns).
Parametrics
MAX318CPA Parametrics:
Packaging
Tube
Function
Switch
Circuit
1 x SPST - NO
On-State Resistance
35 Ohm
Voltage Supply Source
Single, Dual Supply
Voltage - Supply, Single/Dual (±)
10 V ~ 30 V, ±4.5 V ~ 20 V
Current - Supply
1μA
Operating Temperature
0°C ~ 70°C
Mounting Type
Through Hole
Package/Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-PDIP
Features
MAX318CPA Features:
- Low On Resistance <20Ω Typical (35Ω Max)
- Guaranteed Matched On Resistance Between Channels <2Ω
- Guaranteed Flat On Resistance over Analog Signal Range ?3Ω Max
- Guaranteed Charge Injection <10pC
- Guaranteed Off-Channel Leakage <6nA at +85°C
- ESD Guaranteed > 2000V per Method 3015.7
- Single-Supply Operation (+10V to +30V)
Bipolar-Supply Operation (±4.5V to ±20V)
- TTL-/CMOS-Logic Compatible
- Rail-to-Rail Analog Signal Handling Capability
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX318CPA |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX318CPA+ |
Maxim Integrated Products |
Analog Switch ICs Precision SPST NO CMOS |
Data Sheet |
|
|
||||||||||||
