Product Summary
The MAX3232EIPWR is a high-performance Interface IC.
Parametrics
MAX3232EIPWR Parametrics:
Packaging
Tape & Reel (TR)
Type
Transceiver
Protocol
RS232
Number of Drivers/Receivers
2/2
Duplex
Full
Receiver Hysteresis
300mV
Data Rate
250kbps
Voltage - Supply
3 V ~ 5.5 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount

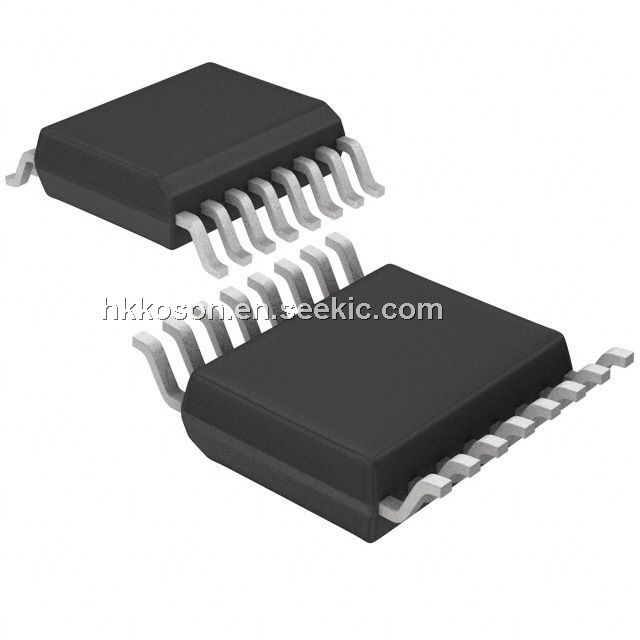

Package / Case
16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
16-TSSOP
Dynamic Catalog
RS-232 Transceivers
Other Names
296-19436-2
Features
MAX3232EIPWR Features:
? ESD Protection for RS-232 Bus Pins
–±15kV (HBM)
–±8kV(IEC61000-4-2,Contact Discharge)
–±15kV(IEC61000-4-2,Air-Gap Discharge)
?Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
?Operates With 3-V to 5.5-V VCC Supply
?Operates up to 250 kbit/s
?Two Drivers and Two Receivers
?Low Supply Current ......300μATyp
?Low SupplCurrent .....300μA Typ
?Accepts 5-V Logic Input With 3.3-V Supply

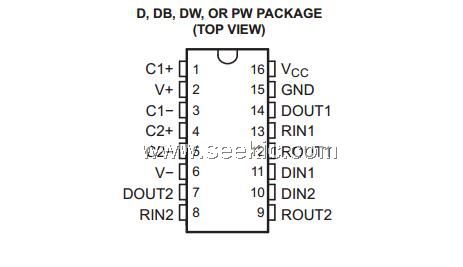

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232EIPWR |
Texas Instruments |
Buffers & Line Drivers 3-5.5V MultiCh Line Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX3232EIPWRE4 |
Texas Instruments |
RS-232 Interface IC 3-5.5V MultiCh Line Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX3232EIPWRQ1 |
Texas Instruments |
RS-232 Interface IC 3-5.5V Multich RS- 232 Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
|
MAX3232EIPWRG4 |
Texas Instruments |
RS-232 Interface IC 3 to 5V Multichannel RS-232 Line Drv/Rcvr |
Data Sheet |
|
|
||||||||||||
