Product Summary
The MC7805CTG is a high-performance Power Management IC.
Parametrics
MC7805CTG Parametrics:
Packaging
Tube
Regulator Topology
Positive Fixed
Voltage - Output
5V
Current - Output
1A
Voltage - Dropout (Typical)
2V @ 1A
Number of Regulators
1
Voltage - Input
Up to 35V
Current - Limit (Min)
-
Operating Temperature
0°C ~ 125°C
Mounting Type
Through Hole
Package / Case
TO-220-3
Supplier Device Package
TO-220AB
Dynamic Catalog
3.3V to 5V
Other Names
MC7805CTGOS
Features
MC7805CTG Features:
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe?Area Compensation
- These are Pb?Free Devices
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

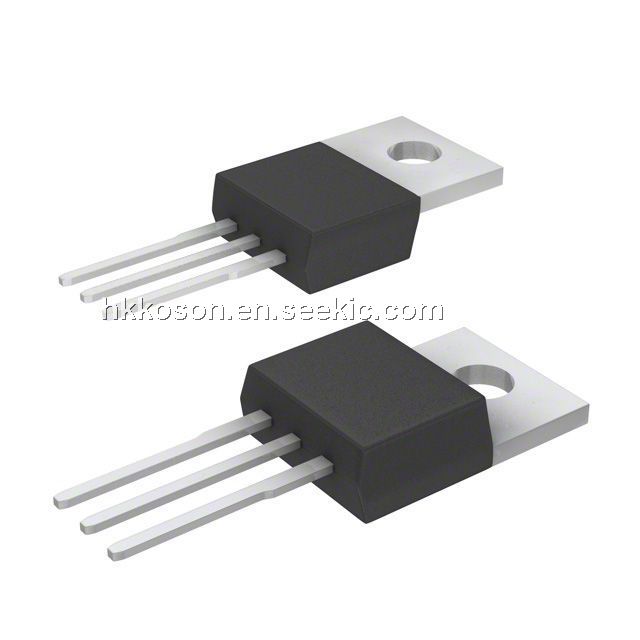

![]() MC7805CTG |
