Product Summary

The MC7812CD2TG is a high-performance 1.0 A Positive Voltage Regulators.

Parametrics

MC7812CD2TG Parametrics:

Packaging Tube
Regulator Topology Positive Fixed
Voltage - Output 12V
Current - Output 1A
Voltage - Dropout (Typical) 2V @ 1A
Number of Regulators 1
Voltage - Input Up to 35V
Current - Limit (Min) -
Operating Temperature 0°C ~ 125°C
Mounting Type Surface Mount
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK
Dynamic Catalog > 5V
Other Names MC7812CD2TG-ND
MC7812CD2TGOS

Features

MC7812CD2TG Features:


  • Output Current in Excess of 1.0 A
  • No External Components Required
  • Internal Thermal Overload Protection
  • Internal Short Circuit Current Limiting
  • Output Transistor Safe?Area Compensation
  • Pb?Free Devices

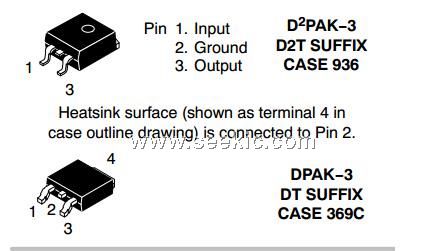

Diagrams


Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

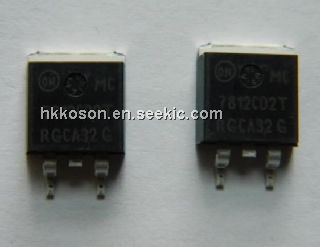

MC7812CD2TG
MC7812CD2TG
ON Semiconductor
Linear Regulators - Standard 12V 1A Postive
Data Sheet
0-1: $0.46
1-25: $0.38
25-100: $0.27
100-500: $0.23
