Product Summary

The MC78L15ACDR2G positive voltage regulators is inexpensive, easy?to?use devices suitable for a multitude of applications

that require a regulated supply of up to 100 mA.

Parametrics

MC78L15ACDR2G Parametrics:

Packaging Tape & Reel (TR)
Regulator Topology Positive Fixed
Voltage - Output 15V
Current - Output 100mA
Voltage - Dropout (Typical) 1.7V @ 40mA
Number of Regulators 1
Voltage - Input Up to 35V
Current - Limit (Min) -
Operating Temperature 0°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC N
Dynamic Catalog > 5V
Other Names MC78L15ACDR2GOS
MC78L15ACDR2GOS-ND
MC78L15ACDR2GOSTR

Features

MC78L15ACDR2G Features:


  • Wide Range of Available, Fixed Output Voltages
  • Low Cost
  • Internal Short Circuit Current Limiting
  • Internal Thermal Overload Protection
  • No External Components Required
  • Complementary Negative Regulators Offered (MC79L00A Series)
  • Pb?Free Devices

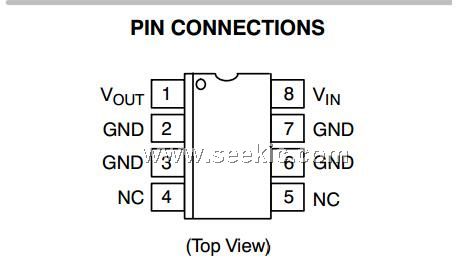

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

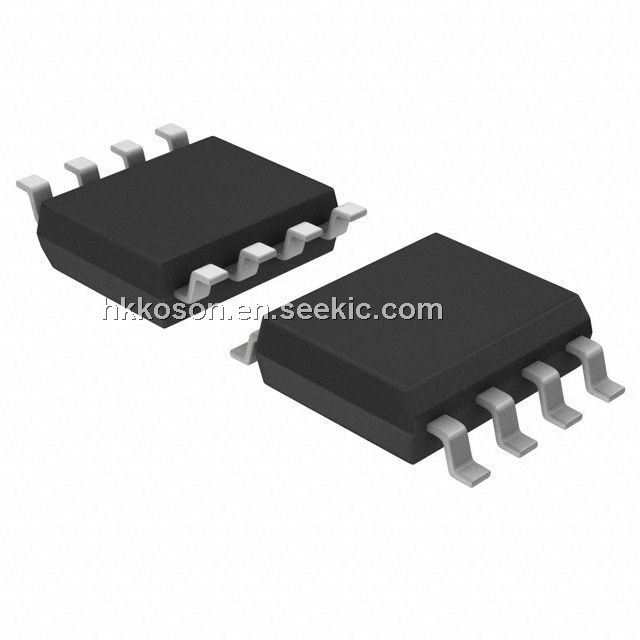

MC78L15ACDR2G
MC78L15ACDR2G
ON Semiconductor
Linear Regulators - Standard 15V 100mA Postive
Data Sheet
0-1: $0.18
1-25: $0.16
25-100: $0.12
100-500: $0.10
