Product Summary

The ML4800 is a controller for power factor corrected, switched mode power supplies. Power Factor Correction
(PFC) allows the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs,
and results in a power supply that fully complies with IEC1000-3-2 speci?cation.

Parametrics

ML4800CP Parametrics:

Standard Package   25
Category Integrated Circuits (ICs)
Family PMIC - PFC (Power Factor Correction)
Series -
Packaging   Tube
Mode Average Current
Frequency - Switching 76kHz
Current - Startup 200μA
Voltage - Supply 11 V ~ 16.5 V
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Package/Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-DIP
Dynamic Catalog PFC (Power Factor Correction)
Other Names ML4800CP_NL
ML4800CP_NL-ND

Features

ML4800CP Features:

  •  Internally synchronized leading-edge PFC and trailingedge PWM in one IC
  •  TriFault Detect? for UL1950 compliance and enhanced safety
  •  Slew rate enhanced transconductance error ampli?er for ultra-fast PFC response
  •  Low power: 200μA startup current, 5.5mA operating current
  •  Low total harmonic distortion, high PF
  •  Reduced ripple current in storage capacitor between PFC and PWM sections
  •  Average current, continuous boost leading edge PFC
  •  PWM con?gurable for current-mode or voltage mode operation
  •  Current fed gain modulator for improved noise immunity
  •  Overvoltage and brown-out protection, UVLO, and soft start

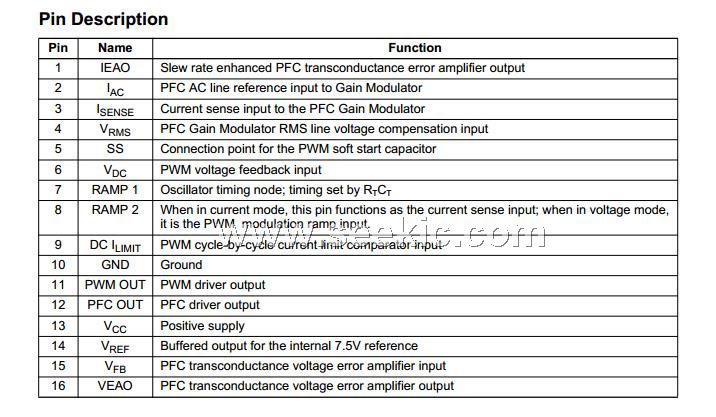

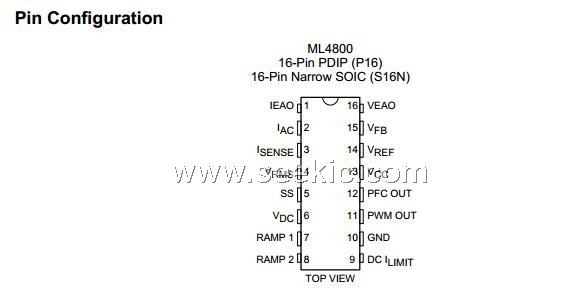

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

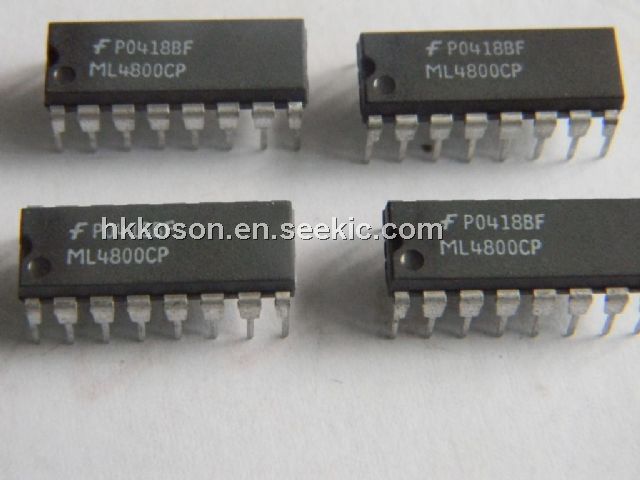

ML4800CP
ML4800CP
Fairchild Semiconductor
Power Factor Correction ICs PFC Controller PWM Combo
Data Sheet
0-1: $2.51
1-25: $2.26
25-100: $2.06
100-250: $1.85
ML4800CP_NL
ML4800CP_NL
Fairchild Semiconductor
Power Factor Correction ICs Power Factor PWM Contrl 0.2mA 81KHz
Data Sheet
Negotiable
ML4800CP_Q
ML4800CP_Q
Fairchild Semiconductor
Power Factor Correction ICs PFC Controller PWM Combo
Data Sheet
Negotiable
