Product Summary
The MM74HCT240MTCX is a high-performance Logic IC.
Parametrics
MM74HCT240MTCX Parametrics:
Packaging
Tape & Reel (TR)
Logic Type
Inverter, Buffer
Number of Circuits
2
Number of Inputs
4
Features
3-State
Voltage - Supply
4.5 V ~ 5.5 V
Current - Quiescent (Max)
4μA
Current - Output High, Low
7.2mA, 7.2mA
Logic Level - Low
0.8V
Logic Level - High
2V
Max Propagation Delay @ V, Max CL
28ns @ 5V, 150pF
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Supplier Device Package
20-TSSOP
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Dynamic Catalog
74HCT
Other Names
MM74HCT240MTCX-ND
MM74HCT240MTCXTR
Features
MM74HCT240MTCX Features:
- TTL input compatible
- Typical propagation delay: 14 ns
- 3-STATE outputs for connection to system buses
- Low quiescent current: 80 PA
- High output drive current: 6 mA (min)

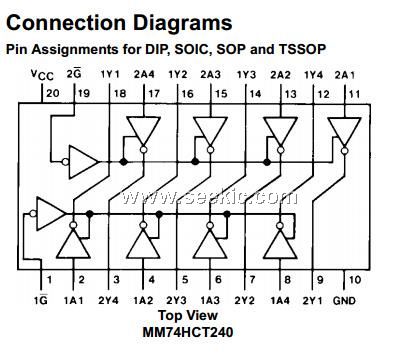

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

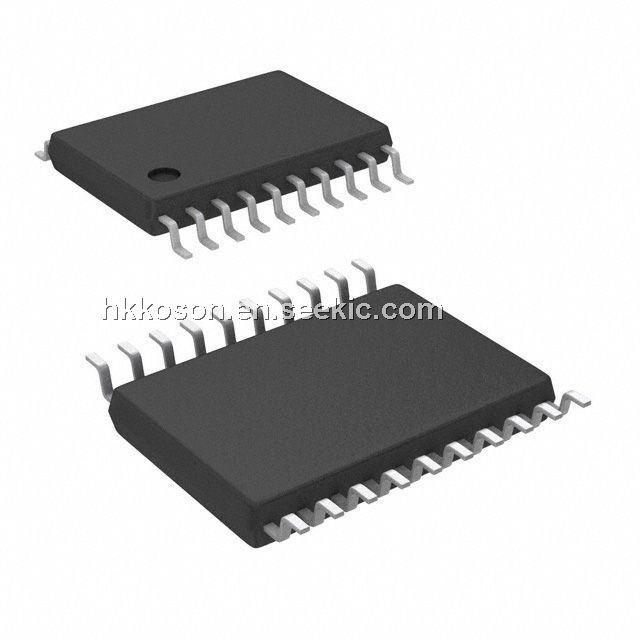

 MM74HCT240MTCX |
Fairchild Semiconductor |
Buffers & Line Drivers Inv Oct 3-STATE Buf |
Data Sheet |
|
|
||||||||||||
