Product Summary
The MMSZ5229BT1G is a high-performance Zener Voltage Regulator.
Parametrics
MMSZ5229BT1G Parametrics:
Packaging
Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)
4.3V
Tolerance
±5%
Power - Max
500mW
Impedance (Max) (Zzt)
22 Ohm
Current - Reverse Leakage @ Vr
5μA @ 1V
Voltage - Forward (Vf) (Max) @ If
900mV @ 10mA
Operating Temperature
-55°C ~ 150°C
Mounting Type
Surface Mount

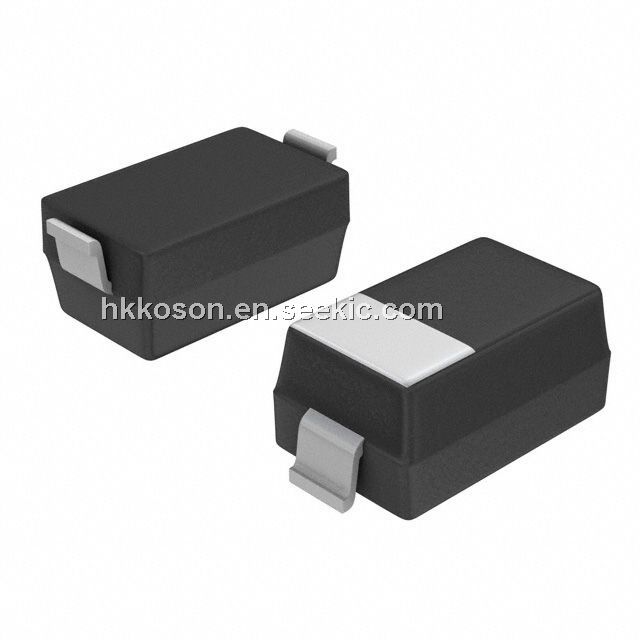

Package / Case
SOD-123
Supplier Device Package
SOD-123
Dynamic Catalog
MMSZ Series
Other Names
MMSZ5229BT1GOS
MMSZ5229BT1GOS-ND
MMSZ5229BT1GOSTR
Features
MMSZ5229BT1G Features:
? 500 mW Rating on FR?4 or FR?5 Board
? Wide Zener Reverse Voltage Range ? 2.4 V to 110 V
? Package Designed for Optimal Automated Board Assembly
? Small Package Size for High Density Applications
? General Purpose, Medium Current
? ESD Rating of Class 3 (> 16 kV) per Human Body Model
? These are Pb?Free Devices*

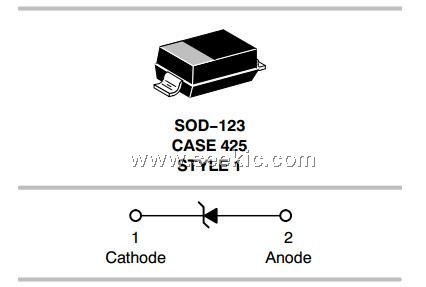

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMSZ5229BT1G |
ON Semiconductor |
Zener Diodes 4.3V 500mW |
Data Sheet |
|
|
||||||||||||
