Product Summary
The MSP430FE427IPM is a high-performance MIXED SIGNAL MICROCONTROLLER.
Parametrics
MSP430FE427IPM Parametrics:
Packaging
Tray
Core Processor
-
Core Size
16-Bit
Speed
8.4MHz
Connectivity
SPI, UART/USART
Peripherals
Brown-out Detect/Reset, LCD, POR, PWM, WDT
Number of I /O
14
Program Memory Size
32KB (32K x 8 + 256B)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
1K x 8
Voltage - Supply (Vcc/Vdd)
1.8 V ~ 3.6 V
Data Converters
A/D 3x16b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C
Package / Case

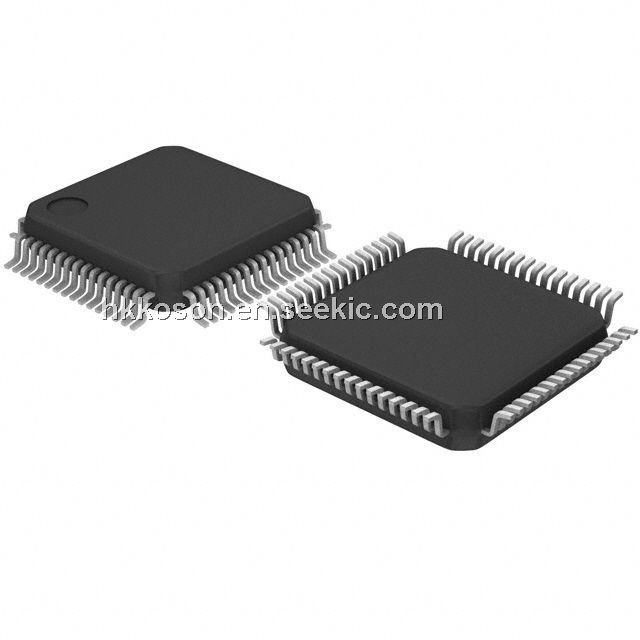

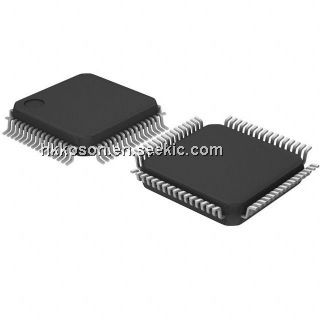

64-LQFP
Dynamic Catalog
MSP430x4xx
For Use With
Other Names
296-16993
Features
MSP430FE427IPM Features:
- Low Supply Voltage Range, 2.7 V to 3.6 V
- Ultralow Power Consumption:
? Active Mode: 400 μA at 1 MHz, 3.0 V
? Standby Mode: 1.6 μA
? Off Mode (RAM Retention): 0.1 μA
- Five Power-Saving Modes
- Five Power-Saving Modes Than 6 μs
- Frequency-Locked Loop, FLL+
- 16-Bit RISC Architecture,125-ns Instruction Cycle Time
- Embedded Signal Processing for Single-Phase Energy Metering With Integrated Analog Front-End and Temperature
Sensor (ESP430CE1)
- Integrated LCD Driver for 128 Segments
- Serial Communication Interface (USART),Asynchronous UART or Synchronous SPI Selectable by Software
- Brownout Detector
- etc

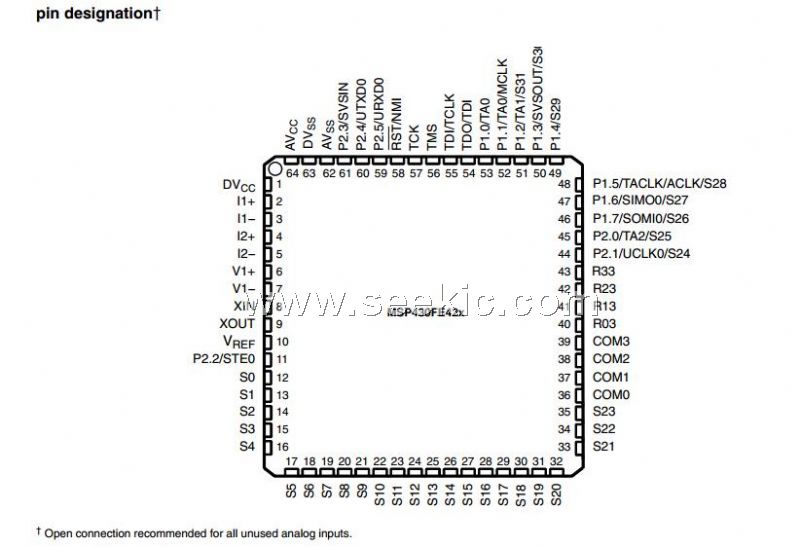

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430FE427IPM |
Texas Instruments |
16-bit Microcontrollers (MCU) 32KB Flash 1MB RAM for Energy Meters |
Data Sheet |
|
|
||||||||||||
|
MSP430FE427IPMR |
Texas Instruments |
16-bit Microcontrollers (MCU) 32KB Flash 1MB RAM for Energy Meters |
Data Sheet |
|
|
||||||||||||
