Product Summary
The NCP600SNADJT1G is a high-performance Power Management IC.
Parametrics
NCP600SNADJT1G Parametrics:
Packaging
Tape & Reel (TR)
Regulator Topology
Positive Adjustable
Voltage - Output
1.25 V ~ 5 V
Current - Output
150mA
Voltage - Dropout (Typical)
0.075V @ 150mA
Number of Regulators
1
Voltage - Input
1.75 V ~ 6 V
Current - Limit (Min)
-
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case

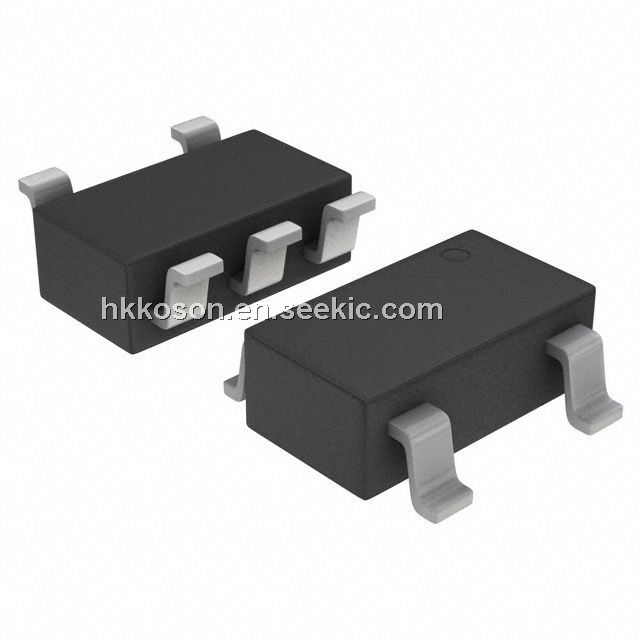

6-TSOP (0.059", 1.50mm Width) 5 leads
Supplier Device Package
5-TSOP
Dynamic Catalog
< 5V(Max)
Other Names
NCP600SNADJT1G-ND
NCP600SNADJT1GOSTR
Features
NCP600SNADJT1G Features:
? Ultra?Low Dropout Voltage of 150 mV at 150 mA
? Adjustable Output by External Resistors from 5.0 V down to 1.25 V
? Fast Enable Turn?on Time of 15 s
? Wide Supply Voltage Range Operating Range
? Excellent Line and Load Regulation
? High Accuracy up to 1.5% Output Voltage Tolerance over All Operating Conditions
? Typical Noise Voltage of 50 Vrms without a Bypass Capacitor
? Pb?Free Package is Available

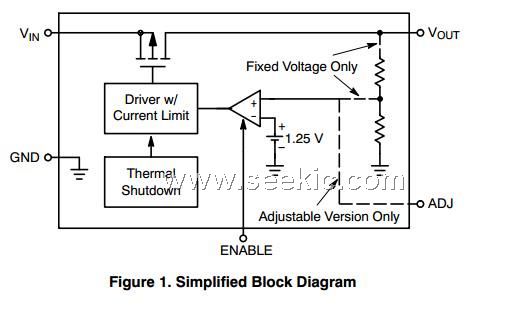

Diagrams
