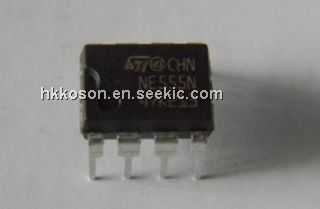

The NE555N monolithic timing circuits is highly stable controllers capable of producing accurate time delays or oscillation.
In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor.
Parametrics
NE555N Parametrics:
Packaging
Tube
Type
555 Type, Timer/Oscillator (Single)
Count
-
Frequency
500kHz
Voltage - Supply
4.5 V ~ 16 V
Current - Supply
10mA
Operating Temperature
0°C ~ 70°C
Package/Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-DIP
Mounting Type
Through Hole
Other Names
497-1963-5
Features
NE555N Features:
- Low turn-off time
- Maximum operating frequency greater than 500 kHz
- Timing from microseconds to hours
- Operates in both astable and monostable modes
- Output can source or sink up to 200 mA
- Adjustable duty cycle
- TTL compatible
- Temperature stability of 0.005% per °C

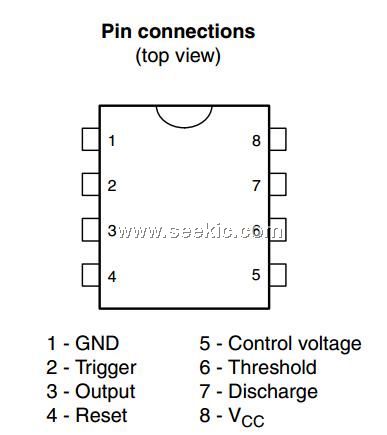

Diagrams
