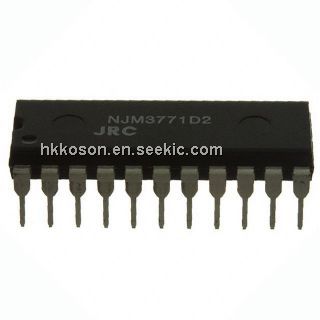

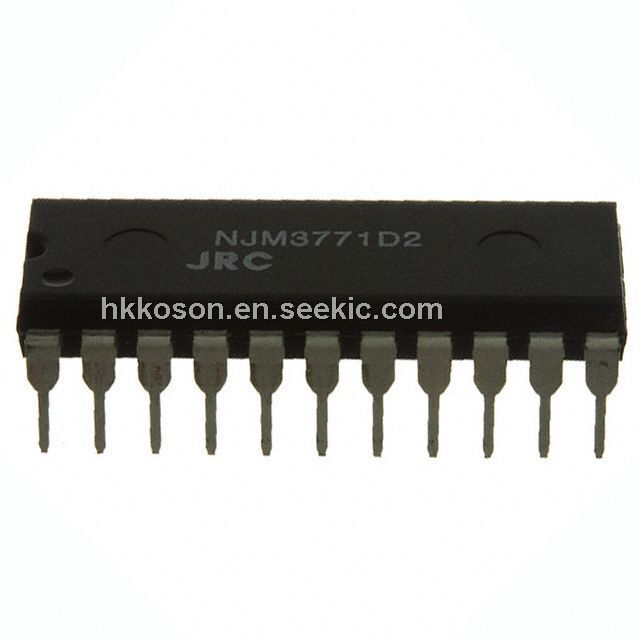

The NJM3771D2 is a stepper motor driver,which is high-performance and high-quality.
Parametrics
NJM3771D2 Parametrics:
Packaging
Tube
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
-
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Full H-Bridge, (2) Dual
Interface
Parallel
Applications
General Purpose
Current - Output
650mA
Voltage - Supply
4.75 V ~ 5.25 V
Voltage - Load
10 V ~ 40 V
Operating Temperature
-20°C ~ 125°C
Mounting Type
*
Package / Case
22-DIP (0.400", 10.16mm)
Supplier Device Package
-
Dynamic Catalog
Drivers
Other Names
NJM#3771D2
NJM#3771D2-ND
NJM3771D2#
NJM3771D2#-ND
Features
NJM3771D2 Features:
● Dual chopper driver
● 650mA output current per channel
● Selectable slow / fast current decay for improved high- speed microstepping
