Product Summary
The NUD4001DR2G is a high-performance High Current LED Driver.
Parametrics
NUD4001DR2G Parametrics:
Packaging
Tape & Reel (TR)
Constant Current
Yes
Constant Voltage
-
Topology
PWM
Number of Outputs
1
Internal Driver
Yes
Type - Primary
Automotive, General Purpose
Type - Secondary
-
Frequency
-
Voltage - Supply
30V
Voltage - Output
28V
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Operating Temperature
-40°C ~ 125°C
Dynamic Catalog
Linear
Other Names
NUD4001DR2GOS
NUD4001DR2GOS-ND
NUD4001DR2GOSTR
Features
NUD4001DR2G Features:
? Supplies Constant LED Current for Varying Input Voltages
? External Resistor Allows Designer to Set Current – up to 500 mA
? Offered in Surface Mount Package Technology (SO?8)
? AEC?Q101 Qualified and PPAP Capable
? Pb?free Package is Available

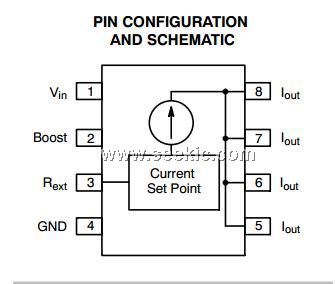

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NUD4001DR2G |
ON Semiconductor |
LED Lighting Drivers MI 60V LED DRVR TR |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
NUD4001DEVB |
ON Semiconductor |
LED Lighting Development Tools NUD4001 EVAL BRD |
Data Sheet |
|
|
||||||||||||
|
NUD4001DR2 |
ON Semiconductor |
LED Lighting Drivers High Current LED |
Data Sheet |
Negotiable |
|
||||||||||||
|
NUD4001DR2G |
ON Semiconductor |
LED Lighting Drivers MI 60V LED DRVR TR |
Data Sheet |
|
|
||||||||||||
|
NUD4011DR2 |
ON Semiconductor |
LED Lighting Drivers Low Current LED |
Data Sheet |
Negotiable |
|
||||||||||||
|
NUD4011DR2G |
ON Semiconductor |
LED Lighting Drivers MI LO CUR LED DRVR |
Data Sheet |
|
|
||||||||||||
 |
NUD4021 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
