Product Summary

The OPA2277UA  is aHigh Precision OPERATIONAL AMPLIFIER.

Parametrics

OPA2277UA Parametrics:

Packaging Tube
Amplifier Type General Purpose
Number of Circuits 2
Output Type -
Slew Rate 0.8 V/μs
Gain Bandwidth Product 1MHz
-3db Bandwidth -
Current - Input Bias 500pA
Voltage - Input Offset 20μV
Current - Supply 790μA
Current - Output / Channel 35mA
Voltage - Supply, Single/Dual (±) 4 V ~ 36 V, ±2 V ~ 18 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Dynamic Catalog General Purpose

Features

OPA2277UA Features:


  •  ULTRA LOW OFFSET VOLTAGE: 10μV
  •  ULTRA LOW DRIFT: ±0.1μV/°C
  •  HIGH OPEN-LOOP GAIN: 134dB
  •  HIGH COMMON-MODE REJECTION: 140dB
  •  HIGH POWER SUPPLY REJECTION: 130dB
  •  LOW BIAS CURRENT: 1nA max
  •  WIDE SUPPLY RANGE: ±2V to ±18V
  •  LOW QUIESCENT CURRENT: 800μA/amplifier

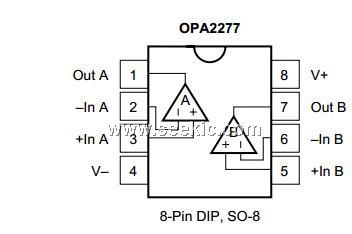

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPA2277UA
OPA2277UA
Texas Instruments
Operational Amplifiers - Op Amps Dual Hi-Precision
Data Sheet
0-1: $2.63
1-10: $2.36
10-25: $2.11
25-50: $1.99
OPA2277UA/2K5
OPA2277UA/2K5
Texas Instruments
Operational Amplifiers - Op Amps High Precision Oper Amplifier
Data Sheet
0-1: $2.23
1-10: $2.00
10-25: $1.78
25-50: $1.68
OPA2277UA/2K5E4
OPA2277UA/2K5E4
Texas Instruments
Operational Amplifiers - Op Amps High Precision Oper Amplifier
Data Sheet
0-1: $2.23
1-10: $2.00
10-25: $1.78
25-50: $1.68
OPA2277UAE4
OPA2277UAE4
Texas Instruments
Operational Amplifiers - Op Amps DUAL HI-PERCISION
Data Sheet
0-1: $2.63
1-10: $2.36
10-25: $2.11
25-50: $1.99
OPA2277UAG4
OPA2277UAG4
Texas Instruments
Operational Amplifiers - Op Amps Dual Hi-Precision
Data Sheet
0-1: $2.63
1-10: $2.36
10-25: $2.11
25-50: $1.99
