Product Summary

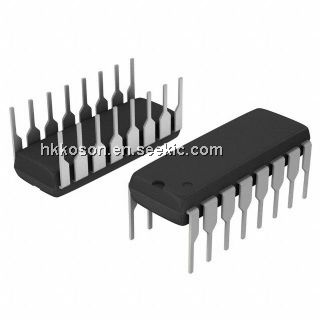

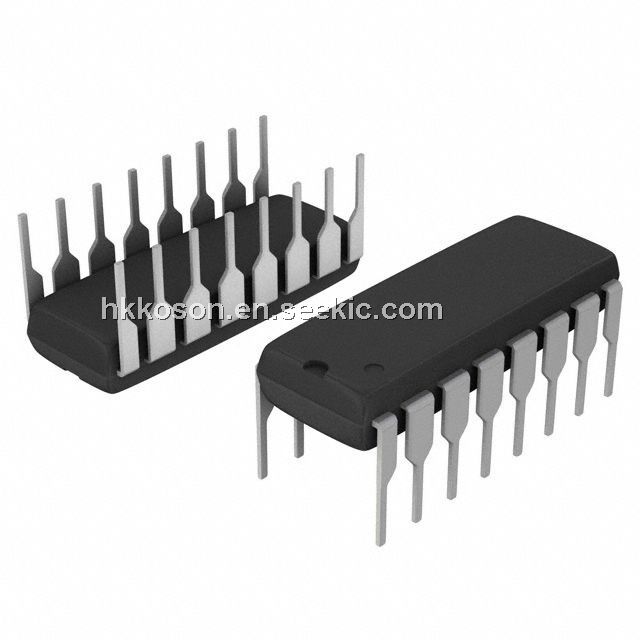

The PCF8591P is a Data Acquisition IC.
Parametrics
PCF8591P Parametrics:
Packaging
Bulk
Type
ADC, DAC
Resolution (Bits)
8 b
Sampling Rate (Per Second)
11.1k
Data Interface
I2C, Serial
Voltage Supply Source
Single Supply
Voltage - Supply
2.5 V ~ 6 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Through Hole
Package / Case
16-DIP (0.300", 7.62mm)
Supplier Device Package
16-DIP
Dynamic Catalog
ADC, DAC
Other Names
568-1087-5
933768130112
PCF8591P112
PCF8591PN
Features
PCF8591P Features:
- Single power supply
- Operating supply voltage 2.5 V to 6.0 V
- Low standby current
- Serial input and output via I2C-bus
- I2C address selection by 3 hardware address pins
- Max sampling rate given by I2C-bus speed
- 4 analog inputs configurable as single ended or differential inputs
- Auto-incremented channel selection
- Analog voltage range from VSS to VDD
- On-chip track and hold circuit
- 8-bit successive approximation A/D conversion
- Multiplying DAC with one analog output.

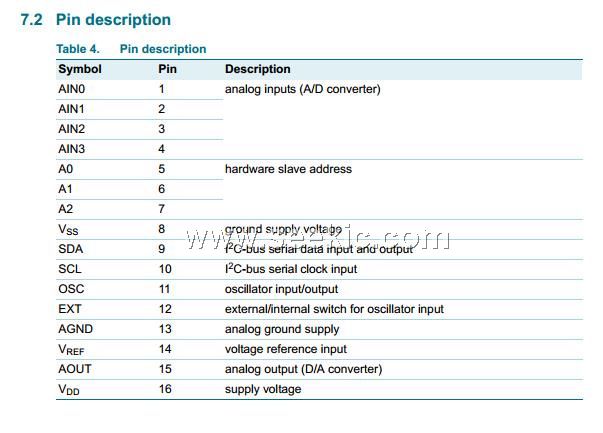

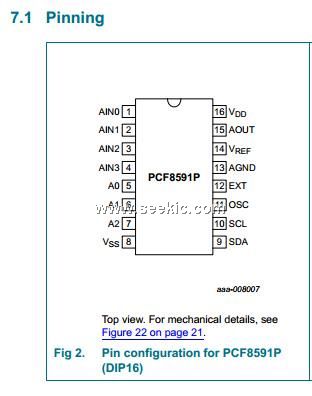

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCF8591P,112 |
NXP Semiconductors |
ADC (A/D Converters) ADC/DAC 8-BIT I2C |
Data Sheet |
|
|
||||||||||||
