Product Summary
The SN65HVD3082EDR is a high-performance Low-Power RS-485 Transceiver.
Parametrics
SN65HVD3082EDR Parametrics:
Packaging
Tape & Reel (TR)
Type
Transceiver
Protocol
RS485
Number of Drivers/Receivers
1/1
Duplex
Half
Receiver Hysteresis
30mV
Data Rate
200Kbps
Voltage - Supply
4.5 V ~ 5.5 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Dynamic Catalog
RS-485 Transceivers
Other Names
296-31719-2
SN65HVD3082EDR-ND
Features
SN65HVD3082EDR Features:
? Available in a Small MSOP-8 Package
? Meets or Exceeds the Requirements of the TIA/EIA?485A Standard
? Low Quiescent Power
– 0.3 mA Active Mode
– 1 nA Shutdown Mode
? 1/8 Unit Load—Up to 256 Nodes on a Bus
? Bus-Pin ESD Protection Up to 15 kV
? Industry-Standard SN75176 Footprint
? Failsafe Receiver (Bus Open, Bus Shorted,Bus Idle)
? Glitch–Free Power–Up/Down Bus Inputs and Outputs

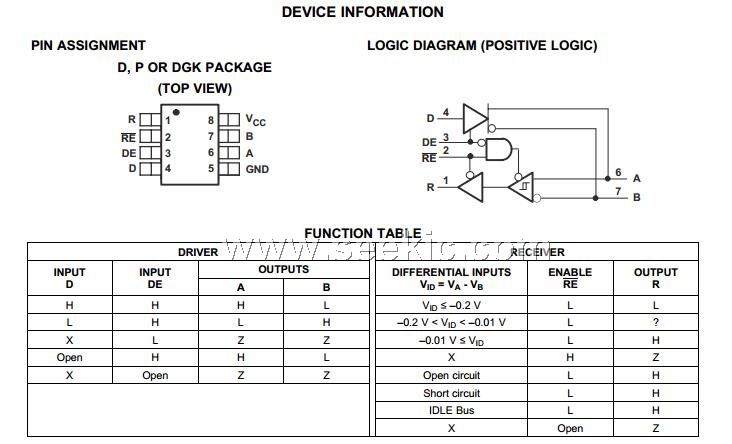

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65HVD3082EDR |
Texas Instruments |
Buffers & Line Drivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN65HVD3082EDRG4 |
Texas Instruments |
Bus Transceivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
