Product Summary

The SN74ALS259N is a 8-bit addressable latches,such 8-bit addressable latches are designed for general-purpose storage

applications in digital systems. Specific uses include working registers,serial-holding registers, and active-high decoders
or demultiplexers. They are multifunctional devices capable of storing single-line data in eight addressable latches and being

a 1-of-8 decoder or demultiplexer with active-high outputs.


Parametrics

SN74ALS259N Parametrics:

Series 74ALS
Packaging Tube
Logic Type D-Type, Addressable
Circuit 1:8
Output Type Standard
Voltage - Supply 4.5 V ~ 5.5 V
Independent Circuits 1
Delay Time - Propagation 2ns
Current - Output High, Low 400μA, 8mA
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Package/Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP
Dynamic Catalog 74ALS
Other Names 296-5053-5

Features

SN74ALS259N Features:


  • 8-Bit Parallel-Out Storage Register Performs Serial-to-Parallel Conversion With Storage
  • Asynchronous Parallel Clear
  • Active-High Decoder
  • Enable/Disable Input Simplifies Expansion
  • Expandable for n-Bit Applications
  • Four Distinct Functional Modes
  • Package Options Include PlasticSmall-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and


Ceramic (J) 300-mil DIPs

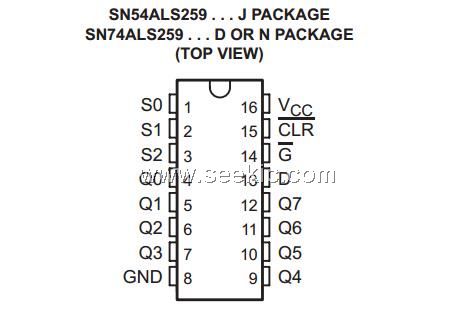

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

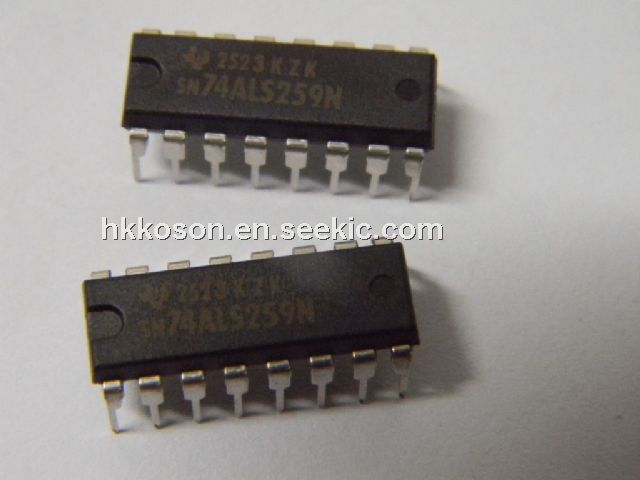

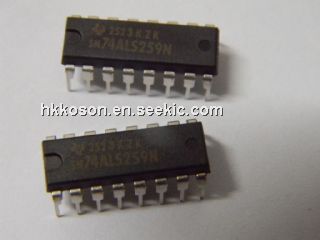

SN74ALS259N
SN74ALS259N
Texas Instruments
Latches Octal Addressable Latches
Data Sheet
0-1: $1.87
1-25: $1.69
25-100: $1.54
100-250: $1.39

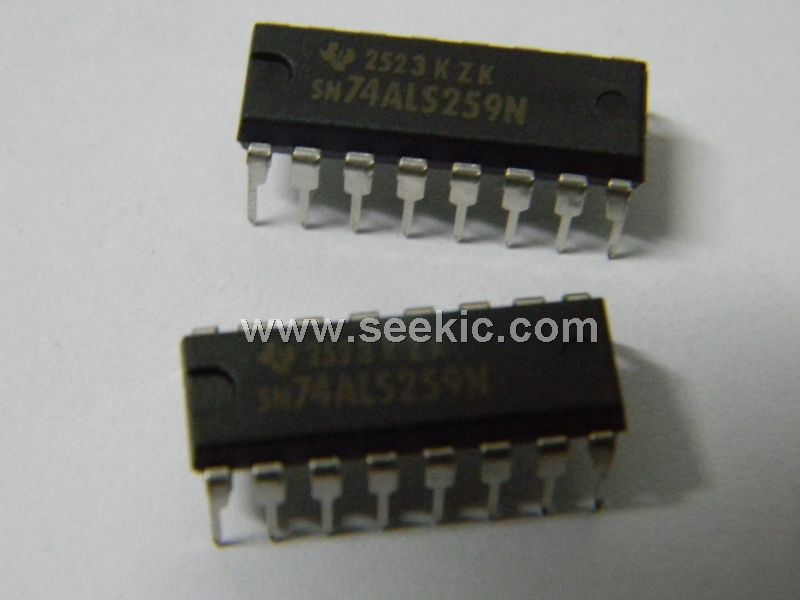

SN74ALS259NE4
SN74ALS259NE4
Texas Instruments
Latches Octal Addressable Latches
Data Sheet
0-1: $1.87
1-25: $1.54
25-100: $1.39
100-250: $1.28
