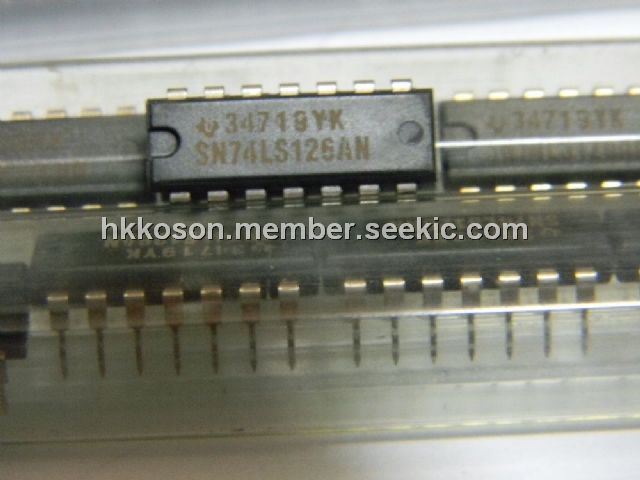

Product Summary

The SN74LS126AN is a bus buffer. It features three-state outputs that, when enabled, have the low impedance characteristics of a TTL output with additional drive capability at high logic levels to permit driving heavily loaded bus lines without external pullup resistors. When disabled, both output transistors are turned off, presenting a high-impedance state to the bus so the output will act neither as a significant load nor as a driver. The SN74LS126AN’s outputs are disabled when G is low.

Parametrics

SN74LS126AN absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 5.5 V; (3)Package thermal impedance, θJA: 80℃/W; (4)Storage temperature range, Tstg: –65 to 150℃.

Features

SN74LS126AN features: (1)Quad Bus Buffers; (2)3-State Outputs; (3)Separate Control for Each Channel.

Diagrams

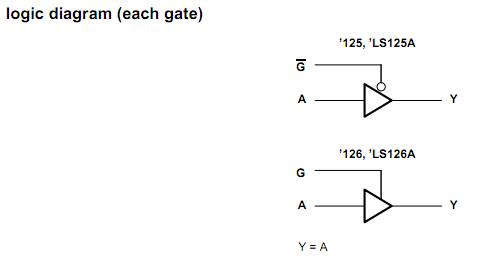

SN74LS126AN logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74LS126AN
SN74LS126AN
Texas Instruments
Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs
Data Sheet
0-1: $0.45
1-25: $0.41
25-100: $0.35
100-250: $0.31
SN74LS126ANE4
SN74LS126ANE4
Texas Instruments
Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs
Data Sheet
0-1: $0.45
1-25: $0.41
25-100: $0.35
100-250: $0.31
SN74LS126ANSR
SN74LS126ANSR
Texas Instruments
Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs
Data Sheet
0-1: $0.45
1-25: $0.37
25-100: $0.32
100-250: $0.28
SN74LS126ANSRG4
SN74LS126ANSRG4
Texas Instruments
Buffers & Line Drivers Quad Bus Buffers
Data Sheet
0-1: $0.45
1-25: $0.37
25-100: $0.32
100-250: $0.28
SN74LS126ANSRE4
SN74LS126ANSRE4
Texas Instruments
Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs
Data Sheet
0-1: $0.45
1-25: $0.37
25-100: $0.32
100-250: $0.28
