Product Summary

The TDA2050V is a high-performance 32 W hi-fi audio power amplifier.

Parametrics

TDA2050V Parametrics:

Packaging   Tube
Type Class AB
Output Type 1-Channel (Mono)
Max Output Power x Channels @ Load 35W x 1 @ 4 Ohm
Voltage - Supply 9 V ~ 50 V, ±4.5 V ~ 25 V
Features Short-Circuit and Thermal Protection
Mounting Type Through Hole
Supplier Device Package 5-PENTAWATT
Package / Case Pentawatt-5 (Vertical, Bent and Staggered Leads)
Other Names 497-3028-5

Features

TDA2050V Features:

■ High output power (50 W music power IEC 268.3 rules)
■ High operating supply voltage (50 V)
■ Single or split supply operations
■ Very low distortion
■ Short-circuit protection (OUT to GND)
■ Thermal shutdown

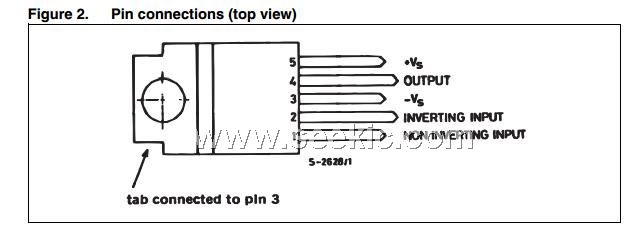

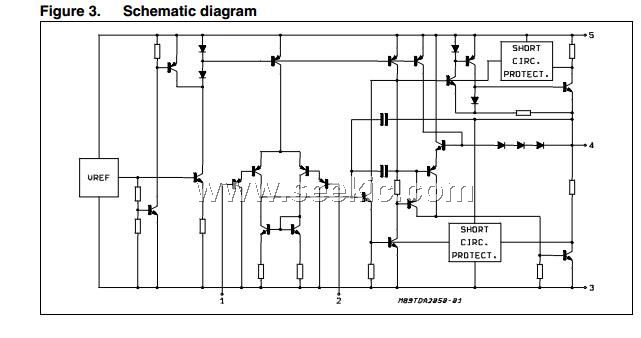

Diagrams

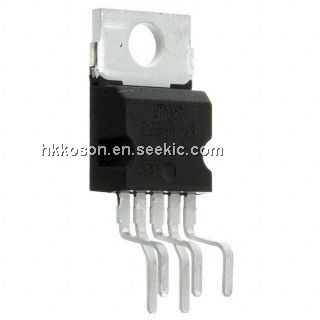

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TDA2050V
TDA2050V
STMicroelectronics
Audio Amplifiers 32W Hi-Fi Audio Amp
Data Sheet
0-1: $1.73
1-10: $1.41
10-100: $1.25
100-250: $1.13
