Product Summary
The TL074IDR is a high-performance Low-Noise JFET-Input Operational Amplifier.
Parametrics
TL074IDR Parametrics:
Packaging
Tape & Reel (TR)
Amplifier Type
J-FET
Number of Circuits
4
Output Type
-
Slew Rate
13 V/μs
Gain Bandwidth Product
3MHz
-3db Bandwidth
-
Current - Input Bias
65pA
Voltage - Input Offset
3mV
Current - Supply
1.4mA
Current - Output / Channel
-
Voltage - Supply, Single/Dual (±)
7 V ~ 36 V, ±3.5 V ~ 18 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
14-SOIC (0.154", 3.90mm Width)
Supplier Device Package
14-SOIC
Dynamic Catalog
J-FET
Other Names
296-15000-2
Features
TL074IDR Features:
? Low Power Consumption
? Wide Common-Mode and Differential Voltage Ranges
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Low Total Harmonic Distortion: 0.003% Typ
? Low Noise
Vn = 18 nV/√Hz Typ at f = 1 kHz
? High Input Impedance: JFET Input Stage
? Internal Frequency Compensation
? Latch-Up-Free Operation
? High Slew Rate: 13 V/μs Typ
? Common-Mode Input Voltage Range Includes VCC+

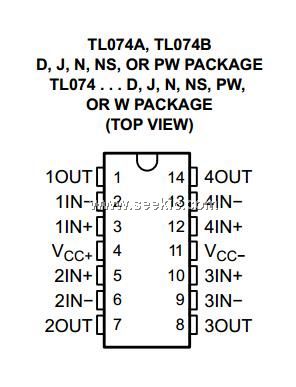

Diagrams
