Product Summary
The TL331IDBVR is high-performance SINGLE DIFFERENTIAL COMPARATOR.
Parametrics
TL331IDBVR Parametrics:
Packaging
Tape & Reel (TR)
Type
Differential
Number of Elements
1
Output Type
CMOS, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (±)
2 V ~ 36 V, ±1 V ~ 18 V
Voltage - Input Offset (Max)
5mV @ 30V
Current - Input Bias (Max)
0.25μA @ 5V
Current - Output (Typ)
20mA
Current - Quiescent (Max)
700μA
CMRR, PSRR (Typ)
-
Propagation Delay (Max)
-
Hysteresis
-
Operating Temperature
-40°C ~ 85°C

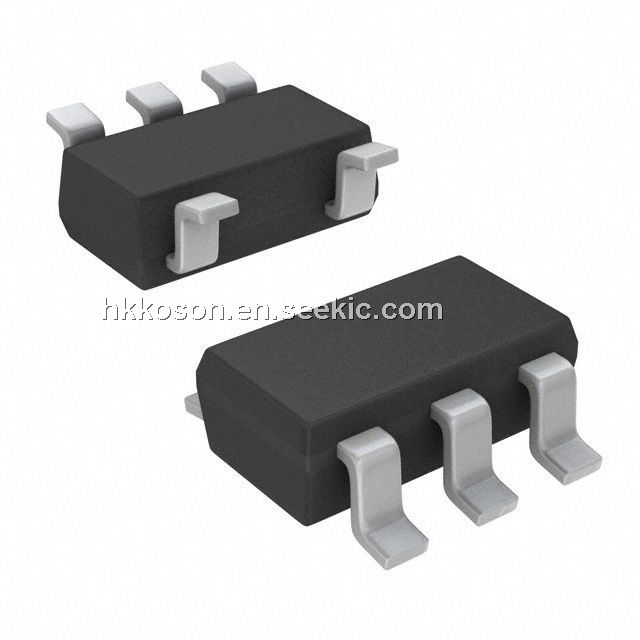

Package / Case
SC-74A, SOT-753
Mounting Type
Surface Mount
Supplier Device Package
SOT-23-5
Dynamic Catalog
Comparators - 1 element
Other Names
296-10168-2
Features
TL331IDBVR Features:
? Single Supply or Dual Supplies
? Wide Range of Supply Voltage . . . 2 V to 36 V
? Low Supply-Current Drain Independent of Supply Voltage . . . 0.4 mA Typ
? Low Input Bias Current . . . 25 nA Typ
? Low Input Offset Voltage . . . 2 mV Typ
? Common-Mode Input Voltage Range Includes
Ground
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage . . . ±36 V
? Low Output Saturation Voltage
? Output Compatible With TTL, MOS, and CMOS

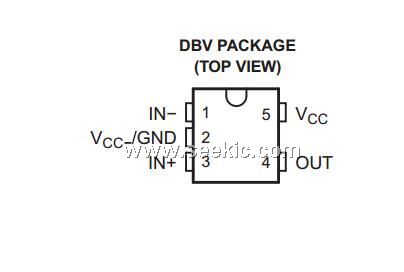

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL331IDBVR |
Texas Instruments |
Comparator ICs Single/Dual Diff |
Data Sheet |
|
|
||||||||||||
|
TL331IDBVRE4 |
Texas Instruments |
Comparator ICs Single Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
TL331IDBVRG4 |
Texas Instruments |
Comparator ICs Single Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
TL331IDBVRQ1 |
Texas Instruments |
Comparator ICs Auto Cat Sgl Diff Comparator |
Data Sheet |
|
|
||||||||||||
