Product Summary

The TLC27L2AIDR is a high-performance  LinCMOS? PRECISION DUAL OPERATIONAL AMPLIFIER.


Parametrics

TLC27L2AIDR Parametrics:

Packaging Tape & Reel (TR)
Amplifier Type General Purpose
Number of Circuits 2
Output Type -
Slew Rate 0.05 V/μs
Gain Bandwidth Product 110kHz
-3db Bandwidth -
Current - Input Bias 0.7pA
Voltage - Input Offset 900μV
Current - Supply 29μA
Current - Output / Channel 30mA
Voltage - Supply, Single/Dual (±) 4 V ~ 16 V, ±2 V ~ 8 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Dynamic Catalog General Purpose
Other Names 296-26750-2
TLC27L2AIDR-ND


Features

TLC27L2AIDR Features:


  • Input Offset Voltage Drift . . . Typically 0.1 μV/Month, Including the First 30 Days
  • Single-Supply Operation
  • Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix,I-Suffix Types)
  • Ultra-Low Power . . . Typically 95 μW at 25°C, VDD = 5 V
  • Output Voltage Range Includes Negative Rail
  • High Input Impedance . . . 1012 Ω Typ
  • ESD-Protection Circuitry
  • Small-Outline Package Option Also Available in Tape and Reel
  • Designed-In Latch-Up immunity

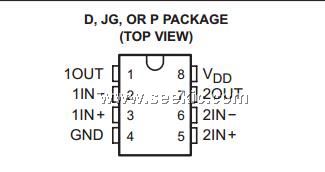

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLC27L2AIDR
TLC27L2AIDR

Texas Instruments

Operational Amplifiers - Op Amps LinCMOS Precision Dual Op Amp

Data Sheet

0-1: $0.64
1-25: $0.51
25-100: $0.45
100-250: $0.39
TLC27L2AIDRG4
TLC27L2AIDRG4

Texas Instruments

Operational Amplifiers - Op Amps LinCMOS Precision Dual Op Amp

Data Sheet

0-1: $0.66
1-25: $0.52
25-100: $0.47
100-250: $0.41
