Product Summary
The TPS65192RHDR is a high-performance Linear IC.
Parametrics
TPS65192RHDR Parametrics:
Packaging
Tape & Reel (TR)
Type
Level Shifter
Applications
LCD Display
Mounting Type
Surface Mount
Package / Case

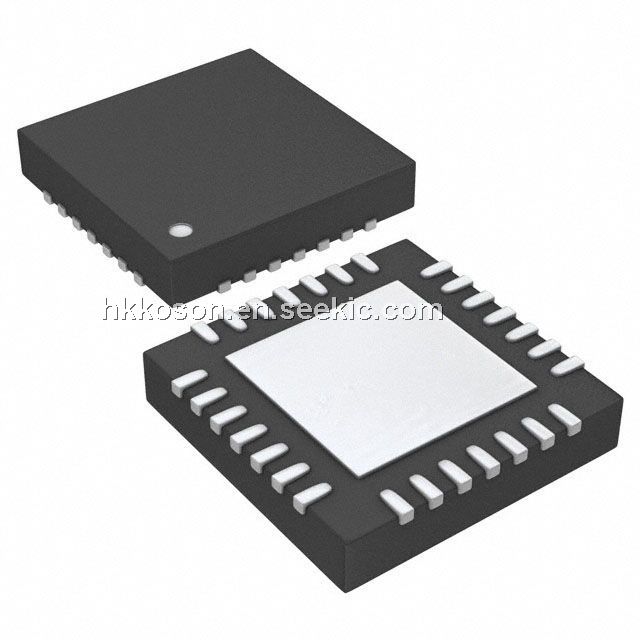

28-VFQFN Exposed Pad
Supplier Device Package
28-VQFN (5x5)
Dynamic Catalog
Video Processing
Other Names
296-24871-2
Features
TPS65192RHDR Features:
? Organized as Two Groups of 7 + 2 Channels
? Separate Positive Supplies (VGHX) for Each Group
? VGHX Levels up to 38V
? VGL Levels Down to –13V
? Panel DISCHARGE Function
? Suitable for 4-Phase and 6-Phase Applications
? Gate Voltage Shaping on Channels 1 to 6
? Supports Single and Multiple Flicker Clocks
? Peak Output Currents greater than 500mA
? 28-Pin 5×5 mm QFN Package
? 9-Channel Level Shifter Supports 6 × CLK,VST, ODD, and EVEN Signals

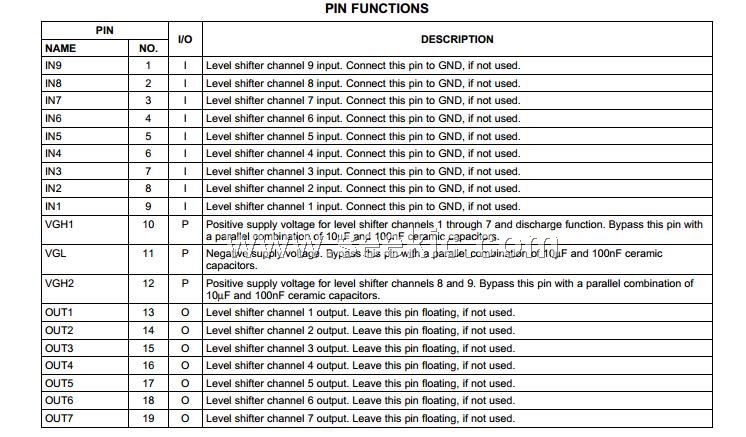

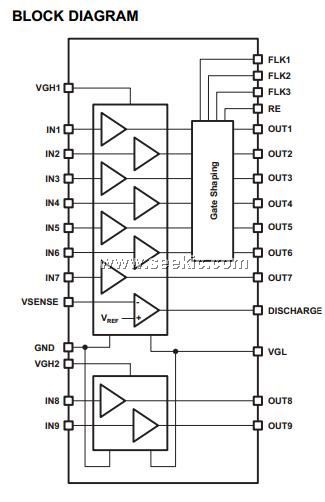

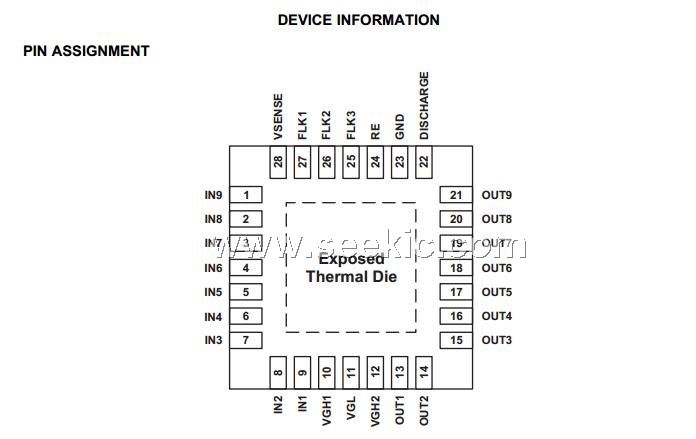

Diagrams
