Product Summary
The TPS659102A1RSLR is an integrated power-management IC.
Parametrics
TPS659102A1RSLR Parametrics:
Packaging
Tape & Reel (TR)
Applications
Handheld/Mobile Devices, OMAP?
Current - Supply
-
Voltage - Supply
1.7 V ~ 5.5 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case

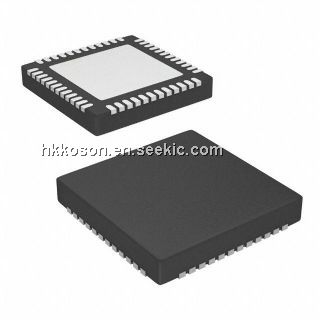

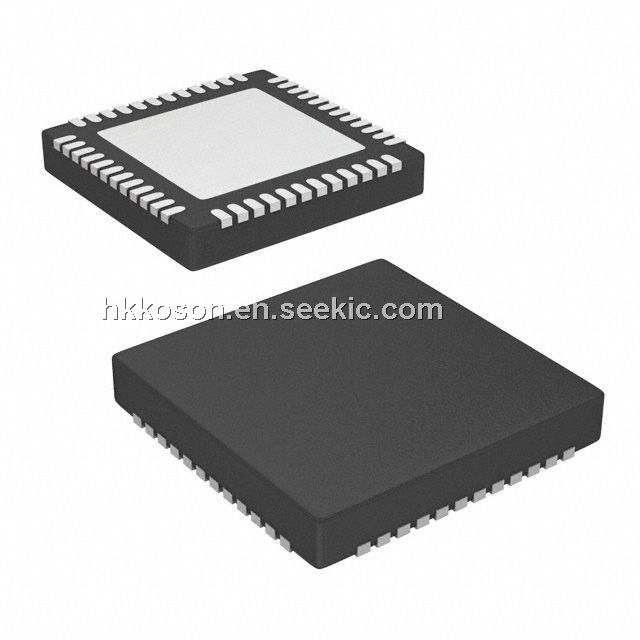

48-VFQFN Exposed Pad
Supplier Device Package
48-VQFN (6x6
Features
TPS659102A1RSLR Features:
? Embedded power controller
? Two efficient step-down dc-dc converters for processor cores
? One efficient step-down dc-dc converter for I/O power
? One efficient step-up 5-V dc-dc converter
? SmartReflex? compliant dynamic voltage management for processor cores
? 8 LDO voltage regulators and one RTC LDO (internal purpose)
? One high-speed I2C interface for general purpose control commands (CTL-I2C)
? One configurable GPIO
? DC-DC switching synchronization through internal or external 3-MHz clock

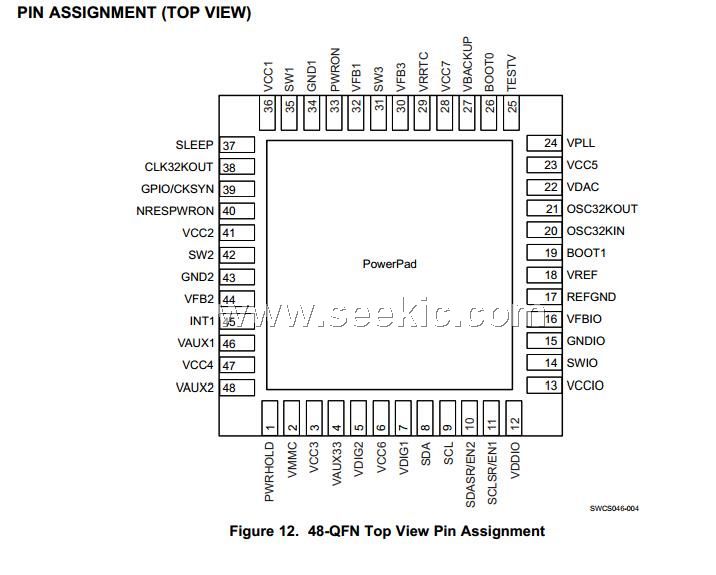

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS659102A1RSLR |
Texas Instruments |
PMIC Solutions Int Pwr Mgmt IC |
