Product Summary

The TPS76733QDR is a high-performance Power Management IC.

Parametrics

TPS76733QDR Parametrics:

Packaging   Tape & Reel (TR)
Regulator Topology Positive Fixed
Voltage - Output 3.3V
Current - Output 1A
Voltage - Dropout (Typical) 0.35V @ 1A
Number of Regulators 1
Voltage - Input Up to 10V
Current - Limit (Min) 1.2A
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC

Features

TPS76733QDR Features:

  •  1 A Low-Dropout Voltage Regulator
  •  Ultralow 85 A Typical Quiescent Current
  •  Fast Transient Response
  •  2% Tolerance Over Specified Conditions for Fixed-Output Versions
  •  Open Drain Power-On Reset With 200-ms Delay (See TPS768xx for PG Option)
  •  Thermal Shutdown Protection

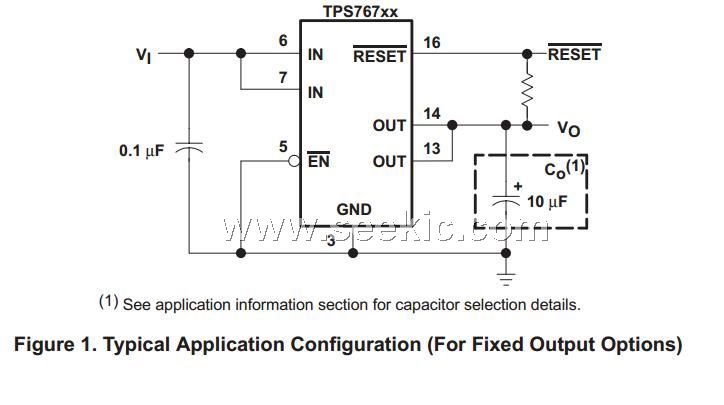

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS76733QDR
TPS76733QDR
Texas Instruments
Low Dropout (LDO) Regulators Fast-Transient Response 1-A
Data Sheet
0-1680: $0.89
1680-2000: $0.86
2000-2500: $0.86
2500-5000: $0.83
TPS76733QDRG4
TPS76733QDRG4
Texas Instruments
Low Dropout (LDO) Regulators Fast-Transient Response 1-A
Data Sheet
0-1680: $0.89
1680-2000: $0.86
2000-2500: $0.86
2500-5000: $0.83
