Product Summary
The TSH72CD is a high-perforamance Rail-to-rail, wide-band, low-power operational amplifiers .
Parametrics
TSH72CD Parametrics:
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
118 V/μs
Gain Bandwidth Product
65MHz
-3db Bandwidth
100MHz
Current - Input Bias
6μA
Voltage - Input Offset
800μV
Current - Supply
9.8mA
Current - Output / Channel
55mA
Voltage - Supply, Single/Dual (±)
3 V ~ 12 V, ±1.5 V ~ 6 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount

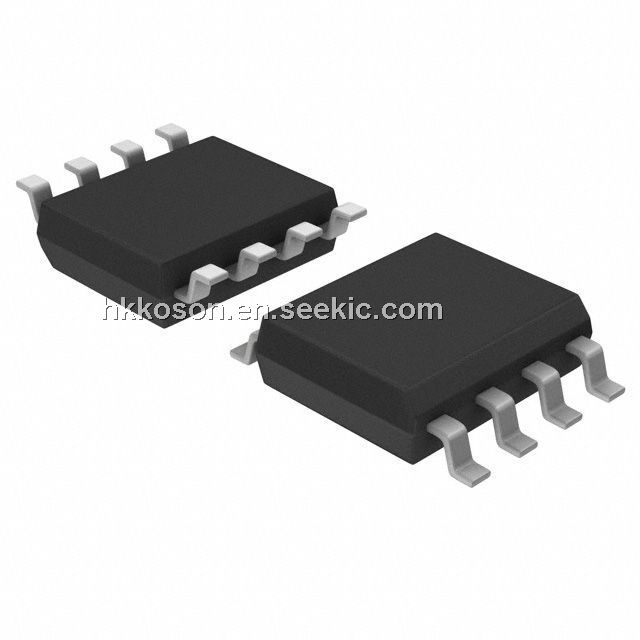

Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SO
Other Names
497-2324-5
Features
TSH72CD Features:
? 3 dB bandwidth: 90 MHz
? Gain bandwidth product: 70 MHz
? Slew rate: 100 V/μs (typical for 5 V)
? Output current: up to 55 mA
? Input single supply voltage
? Output rail-to-rail
? Specified for 150 Ω loads
? Low distortion, THD: 0.1 %

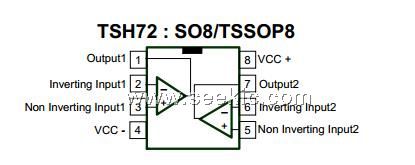

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TSH72CD |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Wideband Lo-Pwr |
Data Sheet |
|
|
||||||||||||
|
TSH72CDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Wideband Lo-Pwr |
Data Sheet |
|
|
||||||||||||
