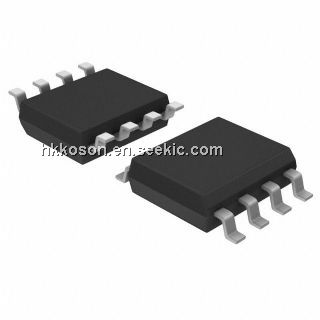

The UC3844BD1R2G is a High Performance Current Mode Controller.
Parametrics
UC3844BD1R2G Parametrics:
Packaging
Tape & Reel (TR)
PWM Type
Current Mode
Number of Outputs
1
Frequency - Max
275kHz
Duty Cycle
50%
Voltage - Supply
10 V ~ 30 V
Buck
No
Boost
Yes
Flyback
Yes
Inverting
Yes
Doubler
No
Divider
No
Cuk
No
Isolated
Yes
Operating Temperature
0°C ~ 70°C
Package / Case
8-SOIC (0.154", 3.90mm Width)
Dynamic Catalog
Current Mode
Other Names
UC3844BD1R2G-ND
UC3844BD1R2GOSTR
Features
UC3844BD1R2G Features:
? Trimmed Oscillator for Precise Frequency Control
? Oscillator Frequency Guaranteed at 250 kHz
? Current Mode Operation to 500 kHz Output Switching Frequency
? Output Deadtime Adjustable from 50% to 70%
? Automatic Feed Forward Compensation
? Latching PWM for Cycle?By?Cycle Current Limiting
? Internally Trimmed Reference with Undervoltage Lockout
? High Current Totem Pole Output
? Undervoltage Lockout with Hysteresis
? Low Startup and Operating Current
? These Devices are Pb?Free and are RoHS Compliant
