Product Summary
The WPC8769LDG is a high-performance Mobile Embedded Controller with SPITM Flash Interface and MC-Compliant CIR Port .
Parametrics
WPC8769LDG Parametrics:
Packaging
Tray
Core Processor
CR16C
Core Size
16-Bit
Speed
25MHz
Connectivity
PS/2, SMBus (2-Wire/I2C), SPI, UART/USART
Peripherals
PWM, WDT
Number of I /O
88
Program Memory Size
1KB (1K x 8)
Program Memory Type
ROM
EEPROM Size
-
RAM Size
4K x 8
Voltage - Supply (Vcc/Vdd)
-
Data Converters
A/D 6x8b, D/A 4x8b
Oscillator Type
External
Operating Temperature
-
Package / Case
128-LQFP
Features
WPC8769LDG Outstanding Features:
■ Shared BIOS flash memory
■ Support for SPI flash memories
■ Flash page programing support
■ MC-compliant Consumer Infrared (CIR) Port
■ High-accuracy, high-speed ADC
■ Up to 88 GPIO ports (including keyboard scanning)with a variety of wake-up events
■ 16-bit RISC core, with up to 4 Mbytes of external address space, running at up to 25 MHz
■ 128-pin LQFP package

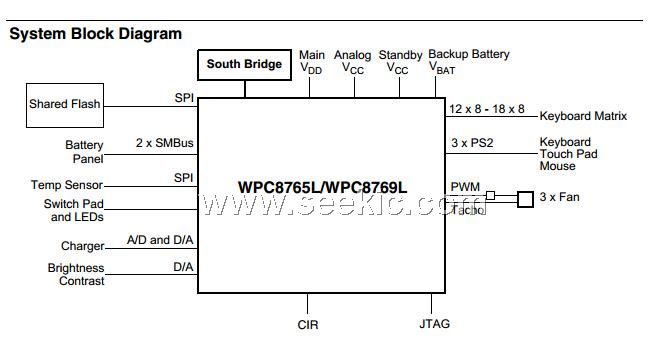

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 WPC8769LDG |
|
IC EMBEDDED CNTRLR 128-LQFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
WPC8768L |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
WPC8769L |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
WPC8769LDG |
|
IC EMBEDDED CNTRLR 128-LQFP |
Data Sheet |
Negotiable |
|
||||
