Product Summary

The ADUM1200ARZ is a high-performance Dual-Channel Digital Isolators.

Parametrics

ADUM1200ARZ Parametrics:

Packaging   Tube
Inputs - Side 1/Side 2 2/0
Number of Channels 2
Voltage - Supply 2.7 V ~ 5.5 V
Voltage - Isolation 2500Vrms
Data Rate 1Mbps
Propagation Delay 150ns
Output Type Logic
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC N
Operating Temperature -40°C ~ 105°C
Dynamic Catalog ADuM1200,01 Series

Features


  • Narrow body, RoHS-compliant, SOIC 8-lead package
  • Low power operation
  • Bidirectional communicatio
  • Precise timing characteristics


-3 ns maximum pulse width distortion

- 3 ns maximum channel-to-channel matching

  • High common-mode transient immunity: >25 kV/μs
  • Qualified for automotive applications
  • Safety and regulatory approvals


UL recognition

2500 V rms for 1 minute per UL 1577

CSA Component Acceptance Notice #5A

VDE Certificate of Conformity

DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12

VIORM = 560 V peak

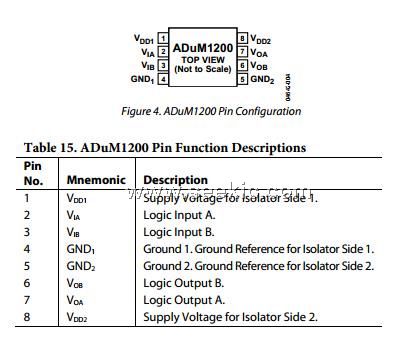

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

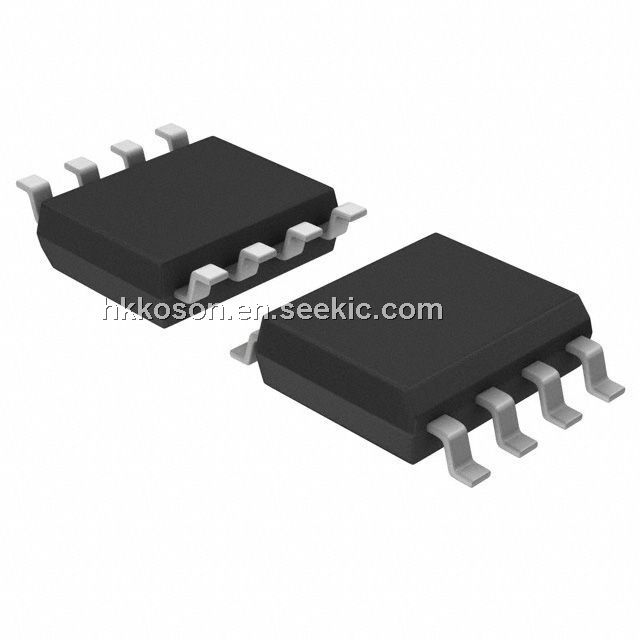

ADUM1200ARZ
ADUM1200ARZ

IC DIGITAL ISOLATOR 2CH 8-SOIC
Data Sheet
0-196: $1.33
ADUM1200ARZ-RL7
ADUM1200ARZ-RL7

IC ISOLATOR DIGITAL DUAL 8-SOIC
Data Sheet
0-1: $1.87
1-10: $1.67
10-25: $1.50
25-100: $1.37
100-250: $1.24
250-500: $1.11
