Product Summary

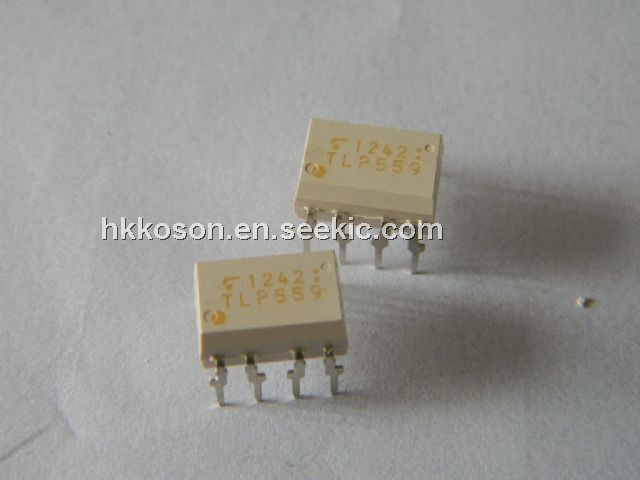

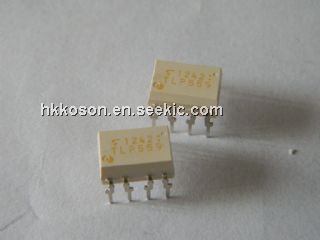

The TOSHIBA TLP559 consists of a GaA?As high?output light emitting diode and a high speed detector of one chip
photo diode?transistor. This unit is 8?lead DIP package.
TLP559 has no internal base connection, and a faraday shield integrated on the photodetector chip provides an effective
common mode noise transient immunity.
So this is suitable for application in noisy environmental condition.Parametrics
TLP559 Parametrics:
|
Packaging |
Tube |
| Number of Channels | 1 |
|---|---|
| Input Type | DC |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 20% @ 16mA |
| Current Transfer Ratio (Max) | - |
| Voltage - Output | 15V |
| Current - Output / Channel | 8mA |
| Current - DC Forward (If) | 25mA |
| Vce Saturation (Max) | - |
| Output Type | Transistor with Vcc |
| Mounting Type | Through Hole |
| Package/Case | 8-DIP (0.300", 7.62mm) |
| Dynamic Catalog | TLP559 Series |
| Other Names | TLP559F |
Features
TLP559 Features:
? Isolation voltage: 2500Vrms (min)
? Switching speed: tpHL = 0.3μs (typ.) tpLH = 0.5μs (typ.) (RL = 1.9kΩ)
? TTL compatible
? UL recognized: UL1577, file No.E67349

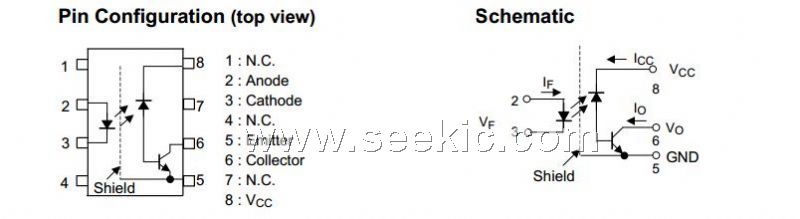

Diagrams
