Product Summary

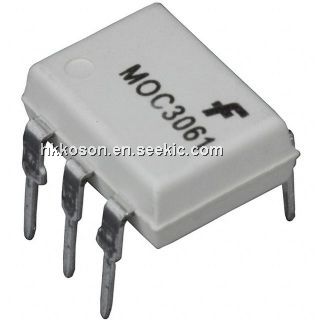

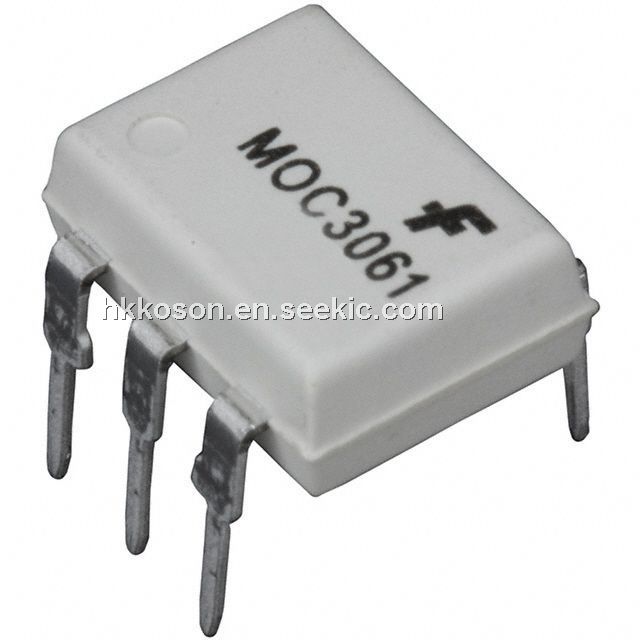

The MOC3061M is a high-performance 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak).

Parametrics

MOC3061M Parametrics:

Packaging Tube
Voltage - Isolation 7500Vpk
Number of Channels 1
Voltage - Off State 600V
Output Type AC, Triac, Zero Cross
Current - Gate Trigger (Igt) (Max) 15mA
Current - Hold (Ih) 500μA
Current - DC Forward (If) 60mA
Current - Output / Channel -
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Dynamic Catalog MOC306xM, MOC316xM Series
Other Names MOC3061-M
MOC3061-MQT
MOC3061-MQT-ND
MOC3061QT

Features

MOC3061M Features:

■ Simplifies logic control of 115/240 VAC power
■ Zero voltage crossing
■ Underwriters Laboratories (UL) recognized (File #E90700, volume 2)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MOC3061M
MOC3061M
Fairchild Semiconductor
Triac & SCR Output Optocouplers 600V Optocoupler Triac Driver ZC
Data Sheet
0-1: $0.55
1-25: $0.48
25-100: $0.44
100-250: $0.38
MOC3061M_Q
MOC3061M_Q
Fairchild Semiconductor
Triac & SCR Output Optocouplers 600V Optocoupler Triac Driver ZC
Data Sheet
0-1: $0.27
1-100: $0.26
100-500: $0.25
500-1000: $0.24
