Product Summary

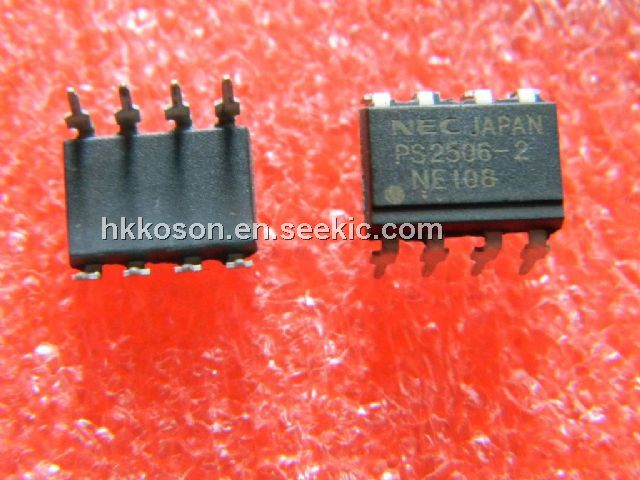

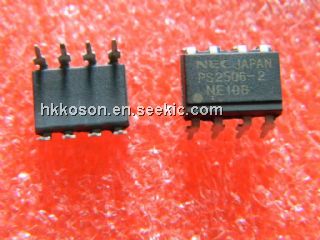

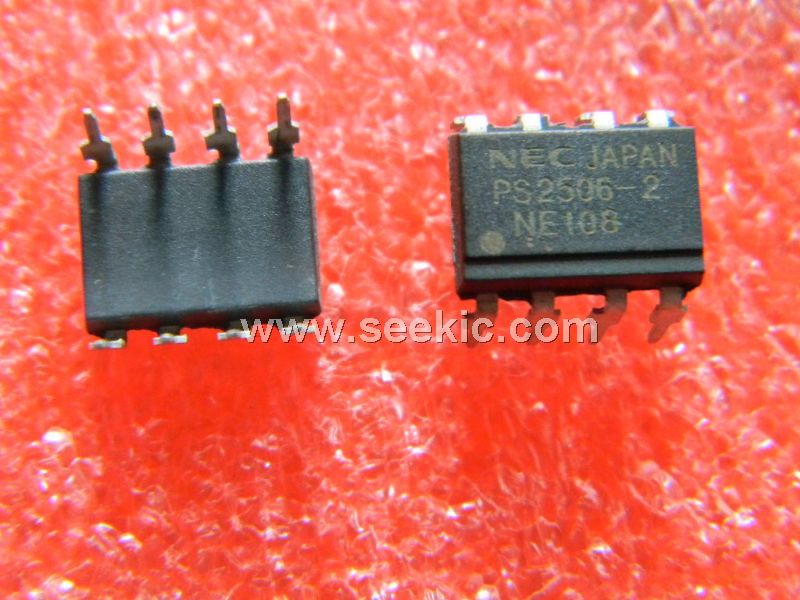

The PS2506-2 is a high-performance Isolators.
Parametrics
PS2506-2 Parametrics:
| Packaging | Tube |
|---|---|
| Number of Channels | 2 |
| Input Type | AC, DC |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 200% @ ±1mA |
| Current Transfer Ratio (Max) | - |
| Voltage - Output | 40V |
| Current - Output / Channel | 160mA |
| Current - DC Forward (If) | ±80mA |
| Vce Saturation (Max) | 1V |
| Output Type | Darlington |
| Mounting Type | Through Hole |
| Package/Case | 8-DIP (0.300", 7.62mm) |
| Other Names |
PS2506-2NEC |
Features
PS2506-2 Features:
- AC input response
- High isolation voltage (BV = 5 000 Vr.m.s.)
- High current transfer ratio (CTR = 2 000% TYP.)
- High-speed switching (tr, tf = 100 μs TYP.)
- Safety standards
UL approved: No. E72422
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS2506-2-A |
CEL |
Transistor Output Optocouplers Hi-Iso Darling 2-Ch |
Data Sheet |
Negotiable |
|
||||
|
PS2506-2 |
CEL |
Transistor Output Optocouplers Hi-Iso Darling 2-Ch |
Data Sheet |
Negotiable |
|
||||
