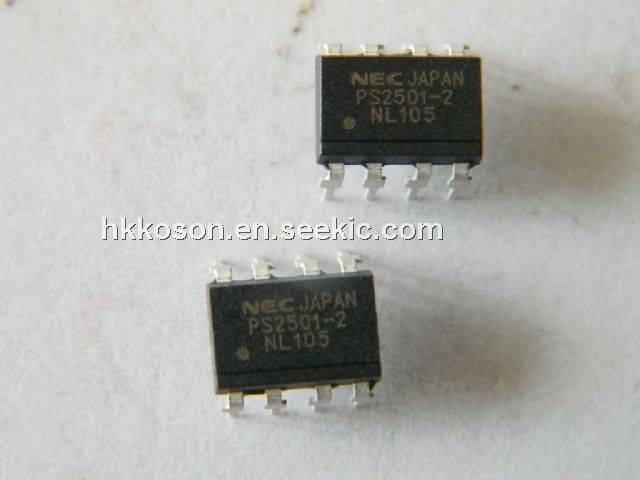

Product Summary
The PS2501-2 is optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.
The PPS2501-2 is in a plastic DIP (Dual In-line Package).
Parametrics
PS2501-2 Parametrics:
Packaging
Tube
Number of Channels
2
Input Type
DC
Voltage - Isolation
5000Vrms
Current Transfer Ratio (Min)
80% @ 5mA
Current Transfer Ratio (Max)
600% @ 5mA
Voltage - Output
80V
Current - Output / Channel
50mA
Current - DC Forward (If)
80mA
Vce Saturation (Max)
300mV
Output Type
Transistor
Mounting Type
Through Hole
Package/Case
8-DIP (0.300", 7.62mm)
Other Names
PS2501-2NEC
Features
PS2501-2 Features:
- High isolation voltage (BV = 5 000 Vr.m.s.)
- High collector to emitter voltage (VCEO = 80 V)
- High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.)
- Safety standards
- UL approved: File No. E72422

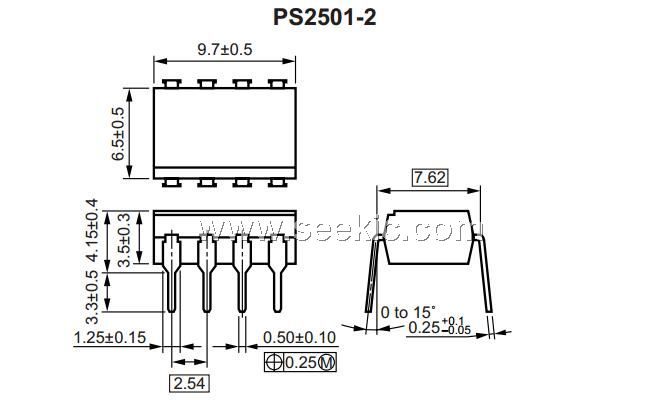

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

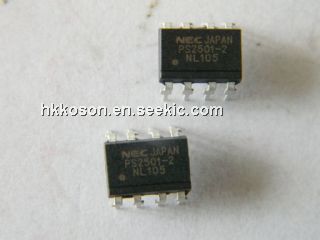

 PS2501-2 |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 2-Ch |
Data Sheet |
Negotiable |
|
||||
|
PS2501-2-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 2-Ch |
Data Sheet |
Negotiable |
|
||||
