Product Summary

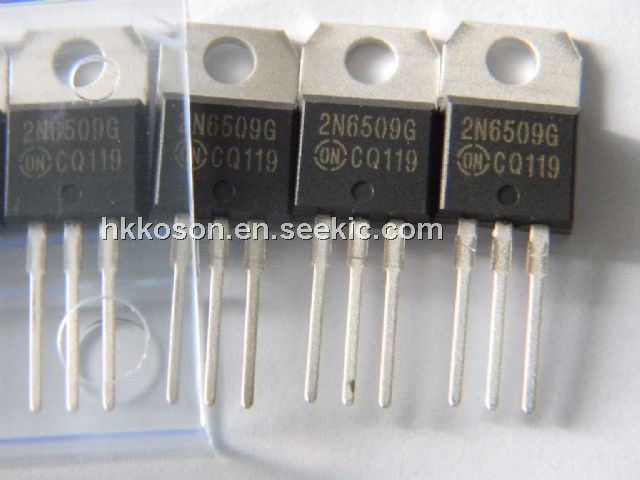

The 2N6509G is a high-performance Silicon Controlled Rectifiers,which Designed primarily for half‐wave ac control applications,
such as motor controls, heating controls and power supply crowbar circuits motor controls, heating controls and power supply
crowbar circuits.
Parametrics
2N6509G Parametrics:
Packaging
Bulk
Voltage - Off State
800V
Voltage - Gate Trigger (Vgt) (Max)
1.5V
Current - Gate Trigger (Igt) (Max)
30mA
Voltage - On State (Vtm) (Max)
1.8V
Current - On State (It (AV)) (Max)
16A
Current - On State (It (RMS)) (Max)
25A
Current - Hold (Ih) (Max)
40mA
Current - Off State (Max)
10μA
Current - Non Rep. Surge 50, 60Hz (Itsm)
250A @ 60Hz
SCR Type
Standard Recovery
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Package/Case
TO-220-3
Supplier Device Package
TO-220AB
Dynamic Catalog
Reverse Blocking Thyristors
Other Names
2N6509GOS
Features
2N6509G Features:
- Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability
- Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability
- Blocking Voltage to 800 Volts
- 300 A Surge Current Capability
- Pb-Free Packages are Available*
