Product Summary
The BT138X-600F is a high-performance 4Q Triac.
Parametrics
BT138X-600F Parametrics:
Packaging
Tube
Triac Type
Standard
Voltage - Off State
600V
Current - On State (It (RMS)) (Max)
12A
Voltage - Gate Trigger (Vgt) (Max)
1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm)
95A, 105A
Current - Gate Trigger (Igt) (Max)
25mA
Current - Hold (Ih) (Max)
30mA
Configuration
Single
Mounting Type
Through Hole

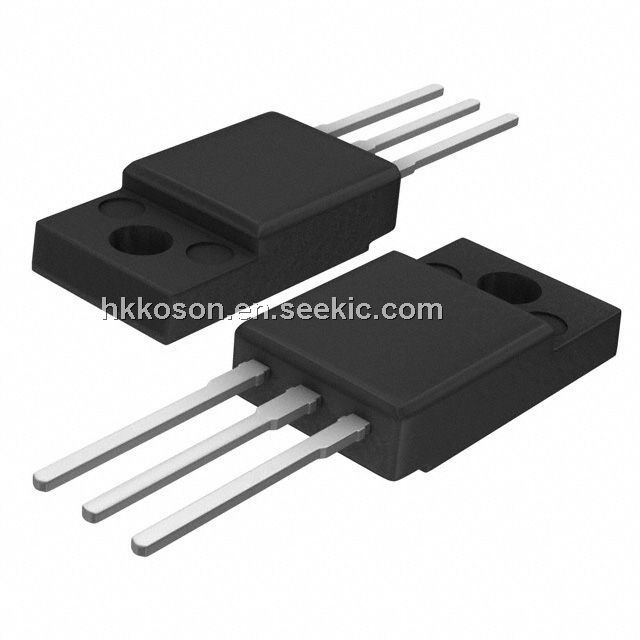

Package / Case
TO-220-3 Isolated Tab
Supplier Device Package
TO-220-3
Other Names
934039970127
BT138X-600F
BT138X-600F-ND
Features
BT138X-600F Features:
? High blocking voltage capability
? Isolated package
? Less sensitive gate for improved noise immunity
? Planar passivated for voltage ruggedness and reliability
? Triggering in all four quadrants

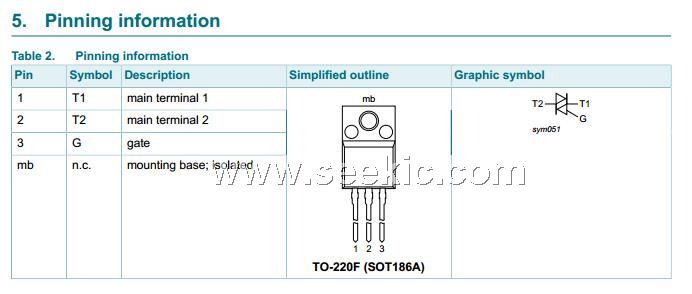

Diagrams
