Product Summary

PNP switching transistor in a SOT23 plastic package.

Parametrics

PMBT2907 Parametrics:

Packaging Tape & Reel (TR)
Transistor Type PNP
Current - Collector (Ic) (Max) 600mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max) -
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 10V
Power - Max 250mW
Frequency - Transition 200MHz
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Dynamic Catalog PNP Transistors

Features

PMBT2907 Features:

? High current (max. 600 mA)
? Low voltage (max. 60 V).

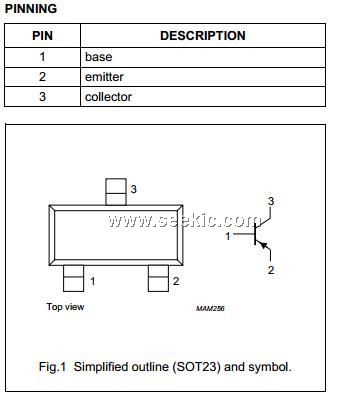

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PMBT2907
PMBT2907
Other

Data Sheet
Negotiable
PMBT2907,215
PMBT2907,215
NXP Semiconductors
Transistors Bipolar (BJT) TRANS SW TAPE-7
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
PMBT2907A,215
PMBT2907A,215
NXP Semiconductors
Transistors Bipolar (BJT) PNP SW 600MA 60V
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
PMBT2907A,235
PMBT2907A,235
NXP Semiconductors
Transistors Bipolar (BJT) TRANS SW TAPE-11
Data Sheet
0-1: $0.08
1-25: $0.08
25-100: $0.06
100-250: $0.03
PMBT2907A /T3
PMBT2907A /T3
NXP Semiconductors
Transistors Bipolar (BJT) TRANS SW TAPE-11
Data Sheet
Negotiable
