Product Summary
The 2SC3837 is a high-frequency amplifier transistor.
Parametrics
2SC3837 absolute maximum ratings: (1)collector-base voltage, VCBO: 30V; (2)collector-emitter voltage, VCEO: 18V; (3)emitter-base voltage, VEBO: 3V; (4)collector current, IC: 50mA; (5)collector power dissipation, PC: 0.15W; (6)junction temperature, Tj: 150℃; (7)storage temperature, Tstg: -55 to 150℃.
Features
2SC3837 features: (1)high transistion frequency, typically fT=1.5GHz; (2)small Cc-rbb and high gain; (3)small NF.

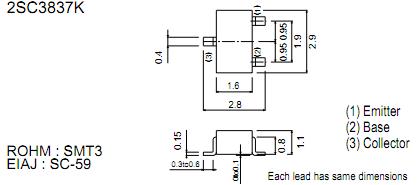

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC3837K |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
2SC3837KT146N |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 20V 50MA |
Data Sheet |
|
|
||||||||||||
|
2SC3837KT146P |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 20V 50MA |
Data Sheet |
|
|
||||||||||||
