Product Summary

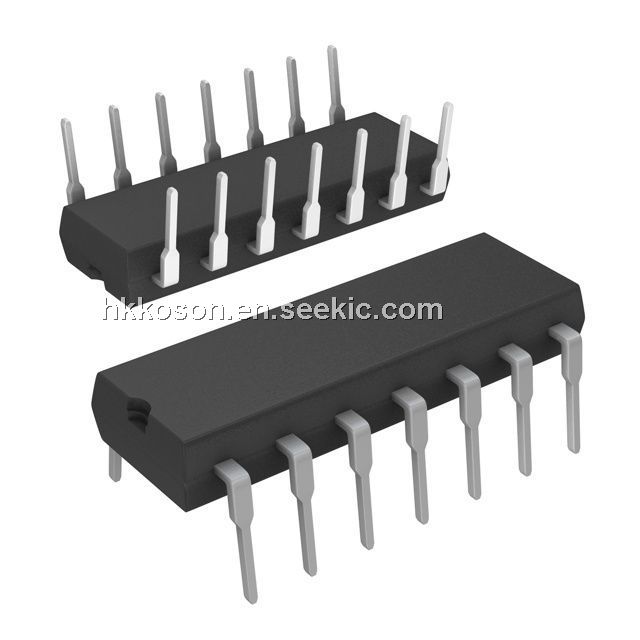

The 74HCT132N is a high-perfromance Quad 2-input NAND Schmitt trigger.
Parametrics
74HCT132N Parametrics:
Packaging
Tube
Logic Type
NAND Gate
Number of Circuits
4
Number of Inputs
2
Features
Schmitt Trigger
Voltage - Supply
4.5 V ~ 5.5 V
Current - Quiescent (Max)
2μA
Current - Output High, Low
4mA, 4mA
Logic Level - Low
0.5 V ~ 0.6 V
Logic Level - High
1.9 V ~ 2.1 V
Max Propagation Delay @ V, Max CL
33ns @ 4.5V, 50pF
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Supplier Device Package
14-DIP
Package / Case
14-DIP (0.300", 7.62mm)
Dynamic Catalog
74HCT
Other Names
568-1511-5
74HCT132N
933669150652
Features
74HCT132N Features:
- ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V

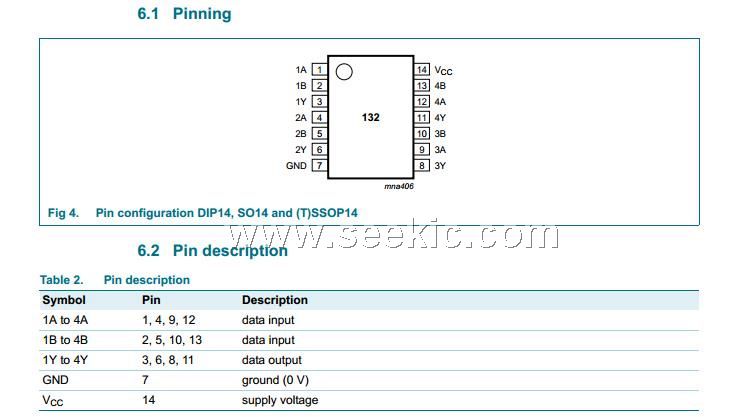

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCT132N,652 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-IN NAND GATE SCHMITT TRIGGER |
Data Sheet |
|
|
||||||||||||
