Product Summary
The 74LVC245APW is a high-performance Logic IC.
Parametrics
74LVC245APW Parametrics:
Packaging | Tape & Reel (TR) |
---|---|
Logic Type | Transceiver, Non-Inverting |
Number of Elements | 1 |
Number of Bits per Element | 8 |
Current - Output High, Low | 24mA, 24mA |
Voltage - Supply | 1.65 V ~ 3.6 V |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |

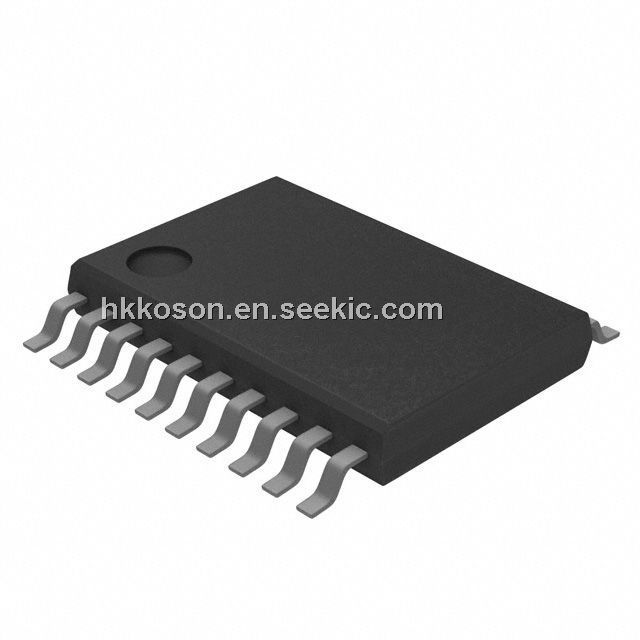

Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 20-TSSOP |
Dynamic Catalog | 74LVC |
Other Names |
568-2301-2 74LVC245APW-T 935211540118 |
Features
74LVC245APW Features:
- 5 V tolerant inputs/outputs for interfacing with 5 V logic
- Wide supply voltage range from 1.2 V to 3.6 V
- CMOS low-power consumption
- Direct interface with TTL levels
- Inputs accept voltages up to 5.5 V
- High-impedance when VCC = 0 V
- Bus hold on all data inputs (74LVCH245A only)
- Complies with JEDEC standard:
JESD8-7A (1.65 V to 1.95 V)
JESD8-5A (2.3 V to 2.7 V)
JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115B exceeds 200 V
CDM JESD22-C101E exceeds 1000 V

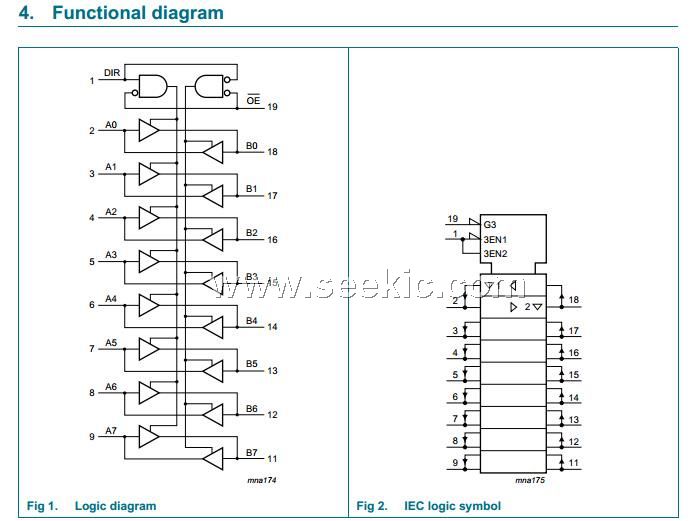

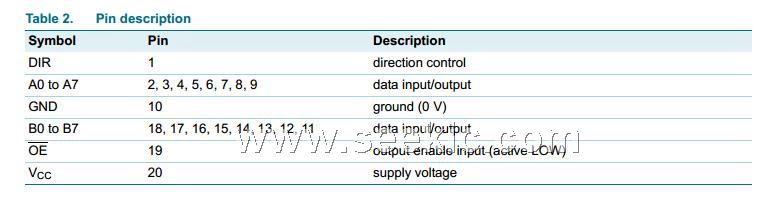

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
74LVC245APW |
NXP Semiconductors |
Bus Transceivers OCTAL XCVR 3 STATE |
Data Sheet |
Negotiable |
|
|||||||||||||
74LVC245APW,112 |
NXP Semiconductors |
Bus Transceivers OCTAL XCVR 3 STATE |
Data Sheet |
|
|
|||||||||||||
74LVC245APW,118 |
NXP Semiconductors |
Bus Transceivers 3.3V OCTAL TRNSCEIVER 3-S |
Data Sheet |
|
|
