Product Summary

The AD532JDZ is a high-performance Linear ic.

Parametrics

AD532JDZ Parametrics:

Packaging Tube
Function Analog Multiplier/Divider
Number of Bits/Stages 4-Quadrant
Package / Case 14-CDIP (0.300", 7.62mm)
Supplier Device Package 14-CDIP
Dynamic Catalog Analog Multipliers, Dividers

Features

AD532JDZ Features:


  • No external components required
  • Differential Inputs for (X1? X2) (Y1? Y2)/10 V transfer function
  • Monolithic construction, low cost

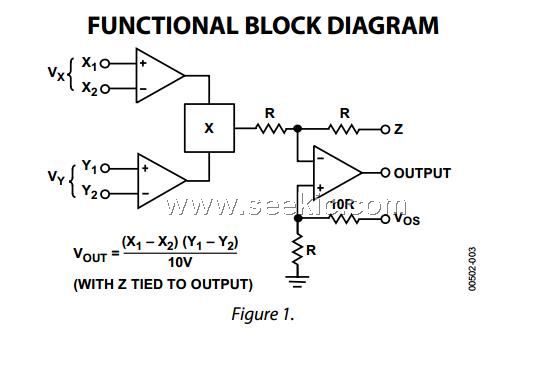

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

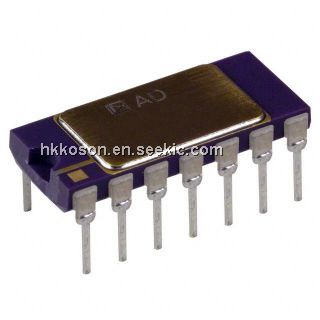

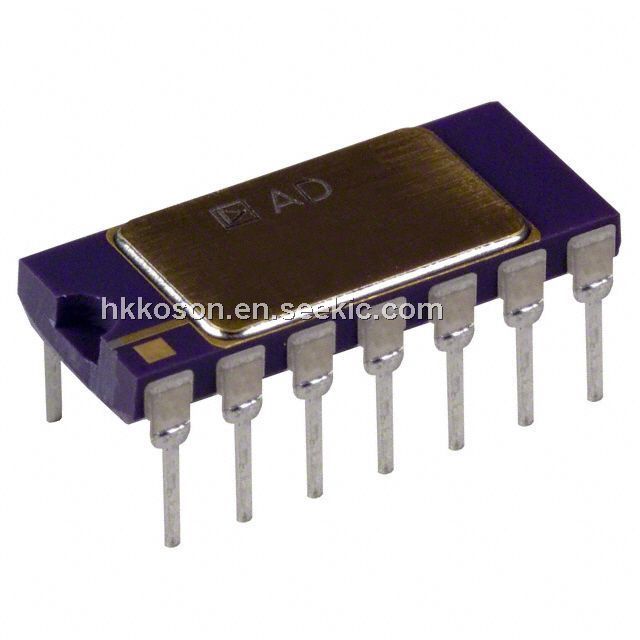

AD532JDZ
AD532JDZ

IC MULTIPLIER 10V 14-CDIP
Data Sheet
0-1: $39.47
1-10: $37.08
10-100: $33.49
100-250: $31.90
